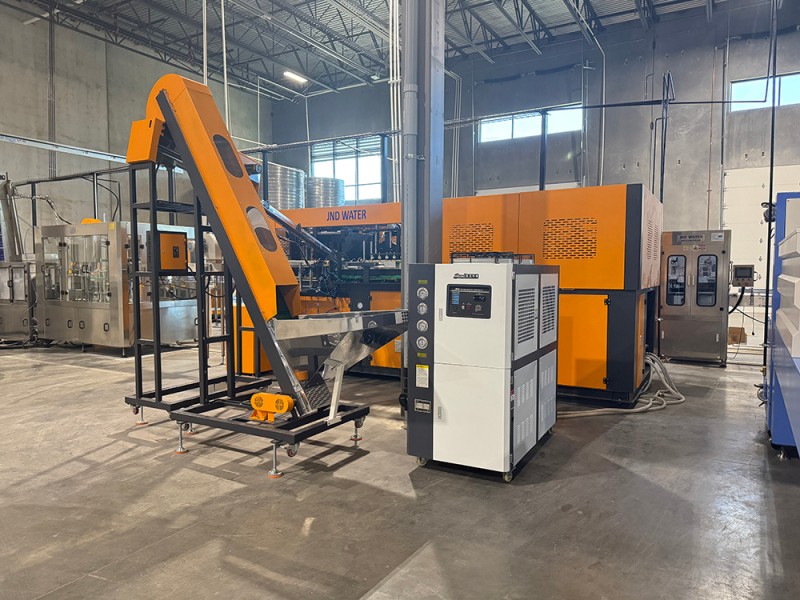

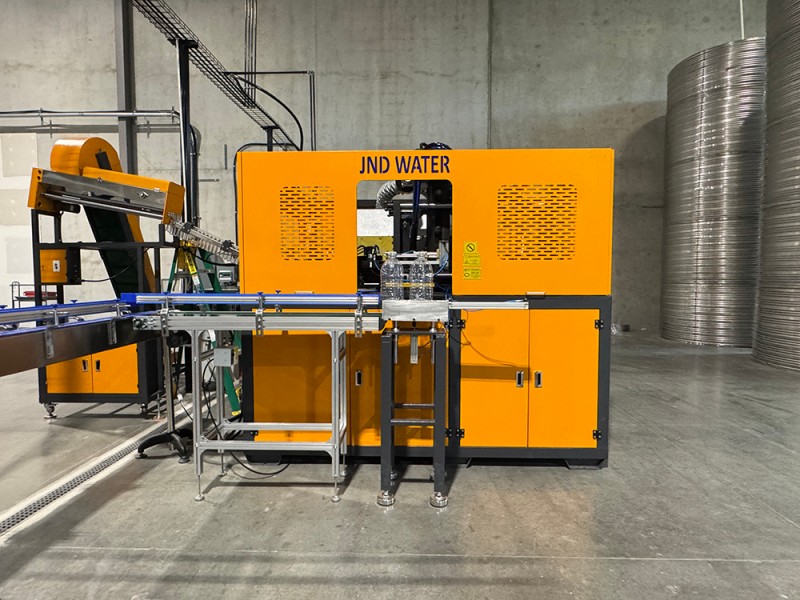

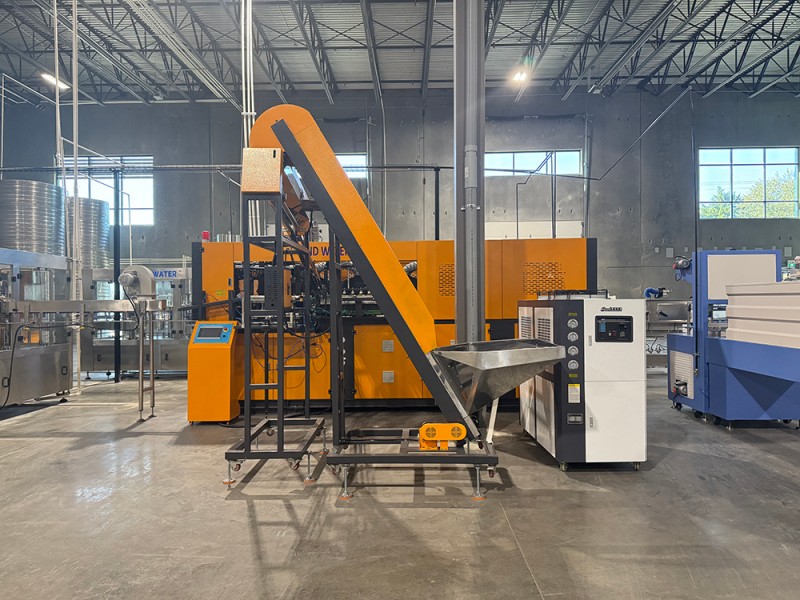

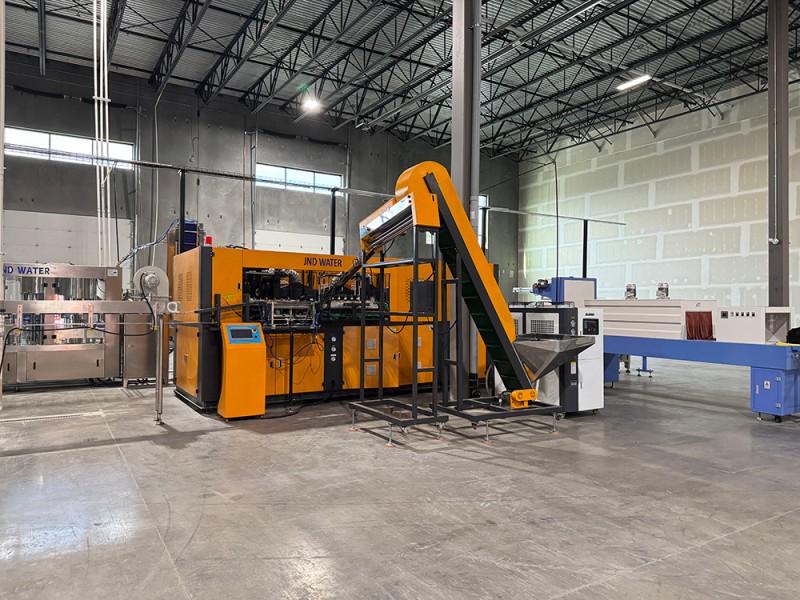

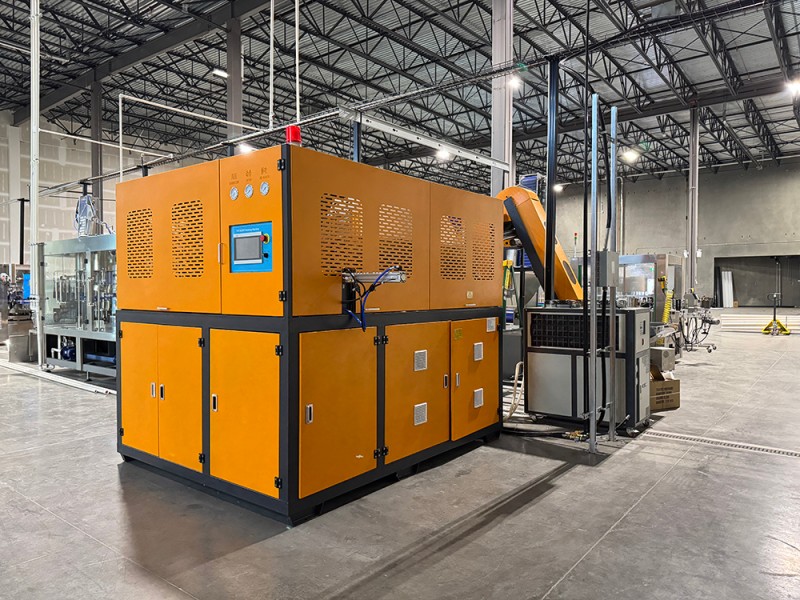

Fully Automatic PET Bottle Blow Molding Machine | JNDTECH 2000 to 15000 BPH

Product Description

Fully Automatic PET Blow Molding Machine — High-Speed, Up to 15000 BPH

JNDTECH fully automatic PET blow molding machine produces 0.2–2 L bottles from heated preforms in one continuous, servo-driven cycle — no manual loading, no shop-air compressor required. With 8–10 cavities and a high-speed rotary or linear configuration, a single unit reaches up to 15,000 bottles per hour, ideal for medium and large water, beverage, edible-oil and detergent filling lines.

Key Features

• Up to 15,000 BPH — 8/10-cavity high-speed design delivers continuous output for full production lines.
• Full-electric servo drive — servo stretching and clamping replace pneumatic cylinders, so no air compressor is needed and energy use drops sharply versus semi-auto machines.
• Automatic preform loader & feeder — hopper, orienting and single-lane feeding run unattended; one operator supervises the line.
• Infrared heating oven with闭环 control — individually regulated lamp zones and reflective shields give even preform heating and stable bottle quality.
• Fast mold change — quick-change neck/body molds swap a bottle shape in 20–30 minutes, supporting multi-SKU production.
• 0.2–2 L bottle range — water, CSD, juice, edible oil and detergent bottles on one platform by changing molds.
• PLC + HMI touchscreen — recipe storage, fault alarm and production counting for stable, traceable runs.
• Low scrap rate — servo stretch control and pre-blow timing keep defect bottles under 0.5%.
• Compact footprint — integrated oven and blowing module save floor space versus separate units.
• Turnkey JNDTECH line — pairs directly with JNDTECH fillers, cappers and labelers for a complete monoblock.

Technical Parameters

Note: figures are typical for high-speed servo PET blow molders. Confirm against your unit's nameplate before publishing.

How It Works — Continuous Servo Blow Molding

Preforms are auto-fed from the hopper, heated in the IR oven to the blowing temperature, then transferred to the blowing station where servo stretch rods pull the parison while high-pressure air forms the bottle against the mold. Because the clamp, stretch and transfer are all servo-driven, the machine needs no shop-air compressor and runs quieter and more efficiently than pneumatic models. Finished bottles eject onto the air conveyor to the filler.

Applications

• Mineral / pure water bottling lines
• Carbonated soft drinks and juice
• Edible oil and condiment bottles
• Detergent and cosmetic PET containers
• Any high-volume PET bottle production

Fully-Auto vs. Semi-Auto Blow Molding

A common question: when do I need a fully automatic machine? Choose fully automatic when you need continuous, high output (typically above a few thousand BPH) with minimal labor — the servo drive also removes the need for a shop-air compressor. Choose semi-automatic (such as our Semi-Auto 5 Gallon PET Blow Molding Machine) for low-volume or large 5-gallon (18.9 L) barrels where manual preform loading is acceptable and cost is the priority. Capacity, automation and bottle size decide the choice.

Why Choose JNDTECH

JNDTECH (Shenzhen) has delivered bottling and blow-molding lines to 125+ countries since 2008. Our fully automatic PET blow molders are built for 24/7 industrial duty, backed by a 17-year track record in turnkey water and beverage plants. Every machine ships with installation, commissioning and operator training so your line reaches rated speed from day one.

Related Products

• Complete Water Bottling Plant (Turnkey Guide)
• Pure / Mineral Water Bottle Filling Machine
• Semi-Auto 5 Gallon PET Blow Molding Machine — for low-volume / barrel water
• Self-Adhesive Labeling Machine

FAQ

Q1: What is the maximum output of this machine?

The 10-cavity model reaches up to 15,000 bottles per hour at 500 ml. Larger configurations or different bottle sizes scale accordingly — contact us with your target output.

Q2: Does it need an air compressor?

No. The full-electric servo design drives stretching and clamping without shop-air, removing the compressor from your utility load and cutting energy cost versus pneumatic semi-auto machines.

Q3: What bottle sizes can it make?

One platform covers 0.2–2 L PET bottles (water, CSD, juice, oil, detergent). Change only the neck and body molds — no major rebuild.

Q4: How long does a mold change take?

A typical neck/body mold swap takes 20–30 minutes, letting you run multiple SKUs on a single machine.

Q5: Is it compatible with my filling line?

Yes. JNDTECH blow molders integrate with our fillers, cappers and labelers into a synchronized monoblock, and output orientation matches standard air conveyors for third-party lines too.
