Juice Filling Machine JNDTECH 2000-36000 BPH

Product Description

What Is a Juice Filling Machine

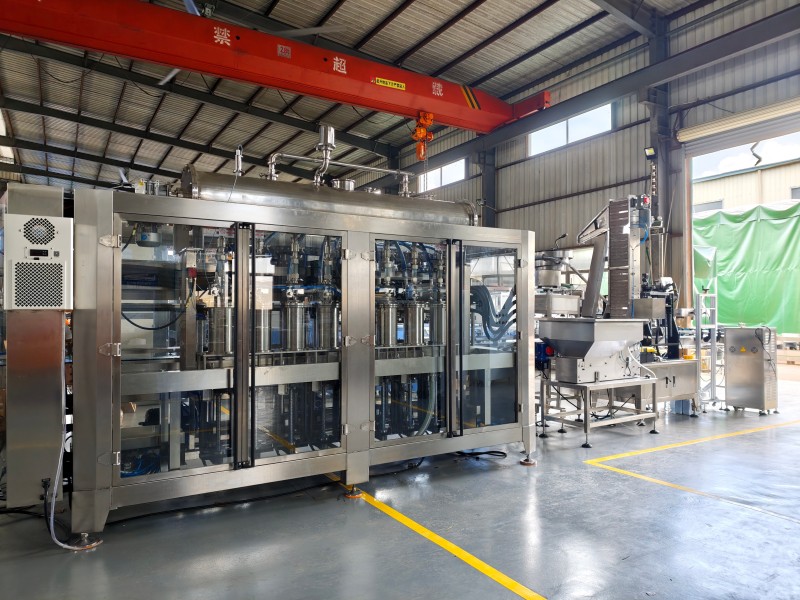

A juice filling machine is a 3-in-1 monoblock that rinses, fills and caps bottles of fruit juice in one continuous process. JNDTECH juice bottling machines handle both pulp juice and clear juice in PET or glass bottles at 2,000 to 36,000 BPH, with food-grade SUS316L contact parts for acidic media and a CIP-ready design for fast, hygienic changeovers.

Hot Fill and Aseptic Options

Juice shelf life depends on how it is filled. JNDTECH offers both technologies on the same machine platform:

• Hot fill juice machine: fills juice at 85-92 degrees Celsius so the heat sterilizes the bottle and cap, extending shelf life without preservatives. Ideal for NFC juice, mango nectar and high-acid fruit drinks.
• Aseptic / cold filling: fills chilled juice in a sterile environment for delicate flavors and low-energy production.

Pulp Juice Handling

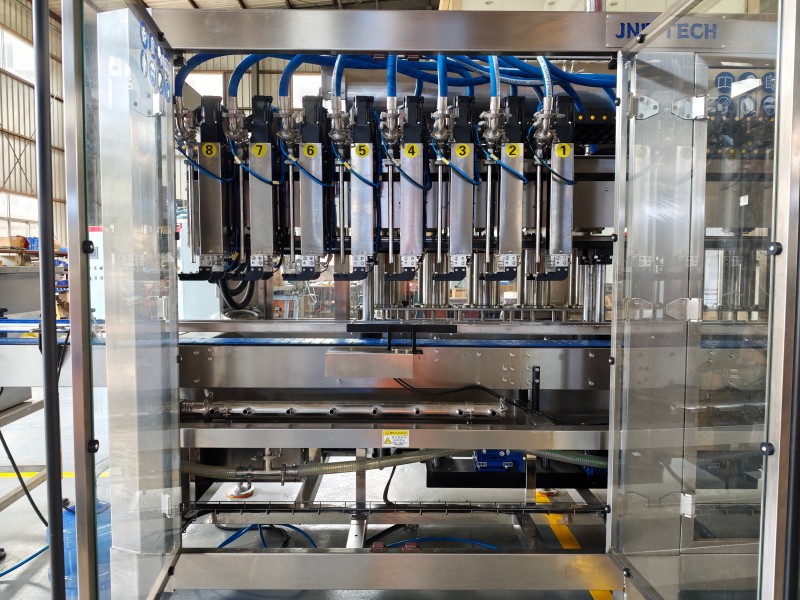

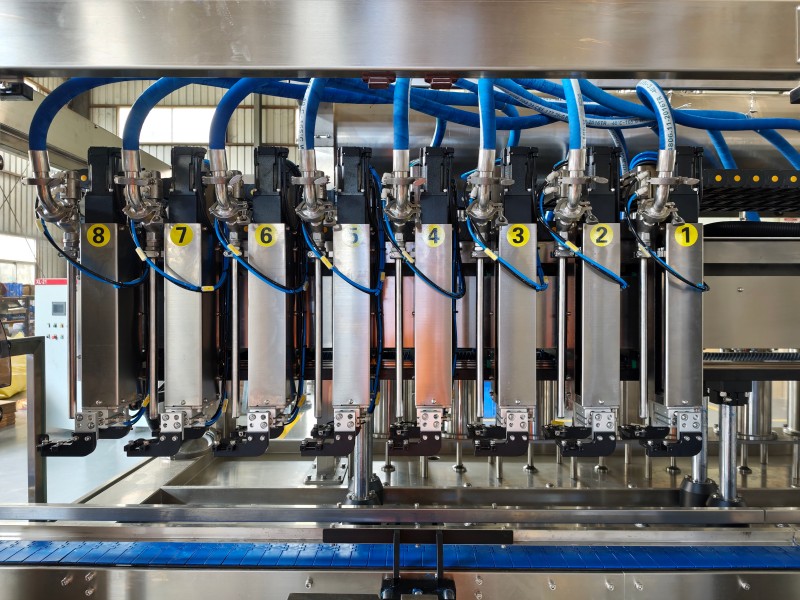

Juices with pulp, fiber or sediment need special filling valves that would clog a standard water filler. Our juice filling machine uses enlarged, anti-clog flow channels and optional pulp dosing so orange juice, mango pulp and mixed-fruit drinks fill evenly without jamming.

Build a Complete Juice Line

The monoblock connects with upstream and downstream equipment to form a full juice bottling line:

1. Fruit juice pasteurizer and deaerator
2. Juice filling monoblock (rinsing, filling, capping)
3. Bottle warming tunnel (for hot fill)
4. PET blow molding machine or glass bottle handling
5. Labeling machine and date coder
6. Shrink wrap or case packing machine

Key Features

• Hot fill (85-92 degrees C) and aseptic cold fill on one platform.
• Anti-clog valves and optional pulp dosing for pulp juice and NFC juice.
• SUS316L food-grade contact parts for acidic fruit juice.
• Accurate flow meter filling with stable level control and low giveaway.
• CIP-ready product path and PLC touchscreen control with recipe memory.
• Optional nitrogen flushing to reduce oxidation for sensitive flavors.

Technical Specifications

Applications

JNDTECH juice filling machines serve fruit juice plants, beverage OEMs and contract packers producing orange juice, apple juice, mango nectar, mixed-fruit drinks, iced tea and functional beverages in PET or glass bottles from 200ml to 2L.

Why Choose JNDTECH

• 17 years of beverage machinery manufacturing, 9,000 plus machines in 125 plus countries.
• Professional after-sales team with 24-hour response and 1-year warranty on every machine.
• On-site installation, commissioning and operator training by our own engineers.
• ISO 9001 certified, CE compliant, with proprietary patents on key filling technologies.
• Turnkey line design from pasteurizer to packer for a complete juice plant.

Frequently Asked Questions

Can the same machine fill pulp juice and clear juice?

Yes. Anti-clog valves handle pulp juice, and a quick changeover switches to clear juice in a few minutes. Optional pulp dosing keeps fiber content consistent.

What is the difference between hot fill and aseptic filling?

Hot fill uses 85-92 degrees C juice to sterilize the package, giving long shelf life without preservatives. Aseptic cold fill keeps flavors delicate at lower energy cost. We help you choose based on your product and market.

Which bottles does it support?

PET and glass bottles from 200ml to 2L, round or square, with screw caps. Change parts switch formats quickly.

Do you supply the complete juice line?

Yes. We supply pasteurizer, filling monoblock, warming tunnel, labeling and packing as a complete turnkey juice bottling line.

Request a Quotation

Tell us your juice type, bottle size and target output for a tailored juice filling machine proposal. Contact JNDTECH or use the inquiry button on this page.
