PET 5-Gallon Bottle Blow Molding Machine Jndtech 90-120BPH

Product Description

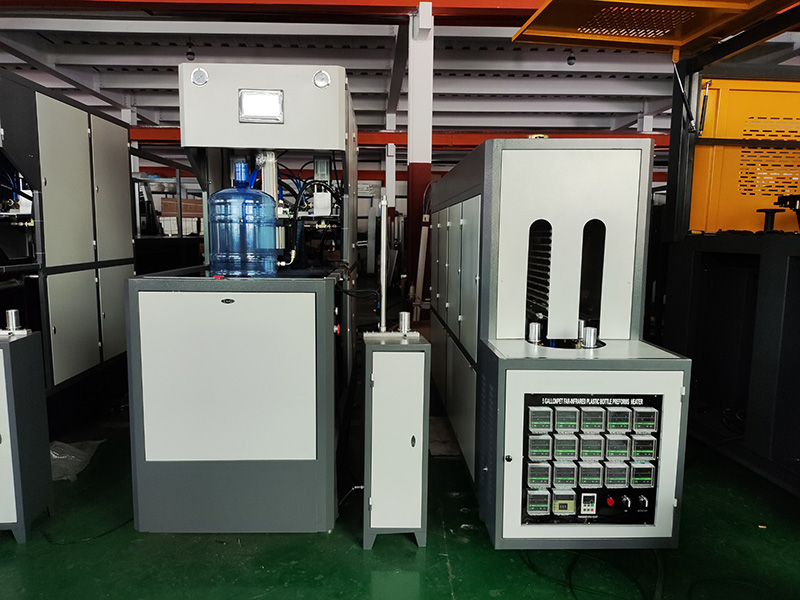

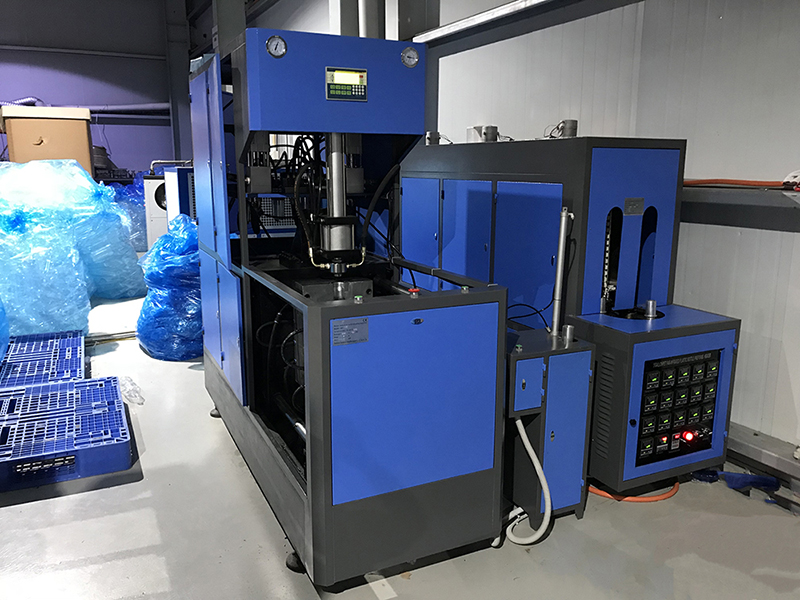

Semi-Auto 5 Gallon PET Blow Molding Machine

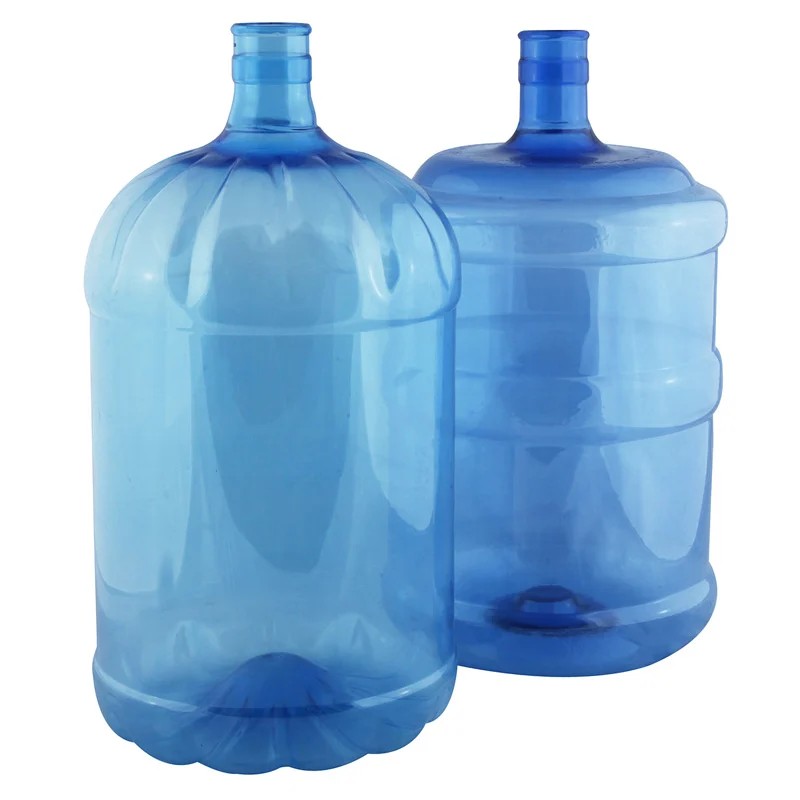

The JNDTECH Semi-Auto 5 Gallon PET Blow Molding Machine is built for barrel water plants that need their own 18.9 L (5 gallon) PET bottles without the cost of a fully automatic line. The operator loads heated preforms and the machine blows them into standard 5-gallon barrels at 90-120 bottles per hour. It is the practical entry point for small and start-up bottled water businesses.

Key Features

• Single-cavity design dedicated to 5 gallon (18.9 L) PET barrels – stable wall thickness, low reject rate.
• Semi-automatic cycle: manual preform loading and bottle take-out, automatic heating and blowing – low labour skill required.
• Infrared heating oven with independent temperature zones for even preform heating and clear bottles.
• High-pressure blowing up to 3.0 MPa for rigid, drop-resistant 5 gallon barrels.
• Compact footprint, fits a small workshop; easy to relocate when capacity grows.
• Simple pneumatic + electric control, low maintenance cost, spare parts easy to source.
• Quick mould change to other neck sizes if a second barrel spec is needed.
• Pairs with JNDTECH 5 gallon filler, washer and capper for a complete barrel water line.

Technical Parameters

How It Works

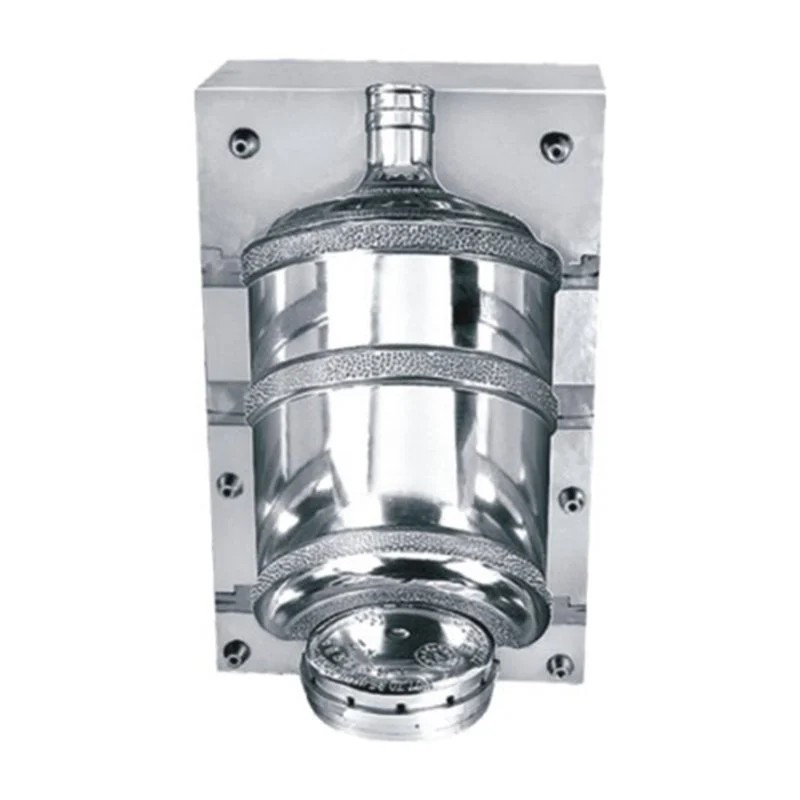

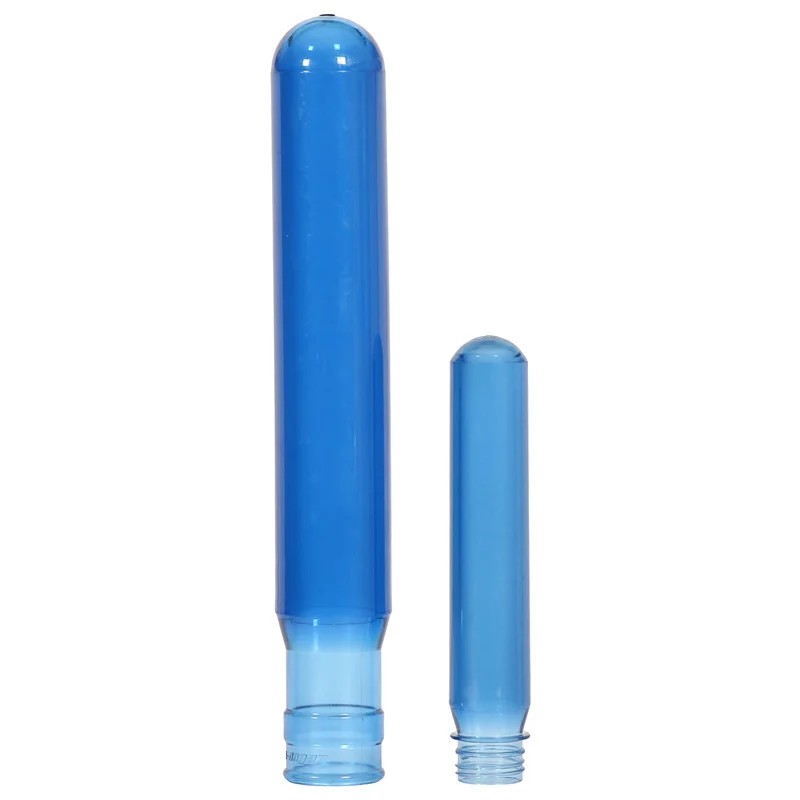

The operator places a PET preform onto the mandrel; the infrared oven heats it to the blowing temperature while temperature zones keep heating even. The heated preform is then clamped into the 5-gallon mould and high-pressure air (up to 3.0 MPa) stretches it against the cavity wall to form the barrel shape. After cooling, the operator removes the finished bottle. Heating and blowing are automatic; loading and take-out are manual – that is what keeps the machine affordable and easy to run.

Applications

Designed for 5 gallon / 18.9 L barrel drinking water plants, village water stations and small private-label bottlers. Also suitable for edible-oil or other large PET containers of the same neck size when the mould is changed.

Why Choose JNDTECH

JNDTECH (Shenzhen) has served beverage filling machinery for 17 years, with equipment in 125+ countries and 450+ turnkey projects. We supply not only this semi-auto blow molder but the full 5 gallon line – washer, filler, capper, labeler and palletizer – with layout design, installation and spare-part support so your plant is commissionable, not just shippable.

Related Products

• Complete Water Bottling Plant – Turnkey Buyer's Guide
• Pure Mineral Water Bottle Filling Machine
• Water Bottle Blowing Machine (PET, full-auto)
• Send Inquiry

FAQ

Semi-auto vs fully automatic – which should I choose?

Choose semi-auto if your daily need is below ~1,000 barrels and you want lower investment and simpler operation. Choose full-auto when capacity or labour cost pushes you past that. Semi-auto is the cheapest way to make your own 5-gallon bottles.

What output can one semi-auto machine give?

About 90-120 5-gallon barrels per hour with one operator. Two machines or a shift extension roughly double daily output.

Can it make bottles other than 5 gallon?

It is optimised for 18.9 L barrels. With a changed mould and neck adapter it can form other large PET containers of the same neck, but small water bottles are better on our multi-cavity automatic models.

Do I need an air compressor?

Yes. You need a low-pressure compressor for the machine and a high-pressure booster (to ~3.0 MPa) for blowing. We can quote a matched unit if you do not have one.

Is it easy to learn and maintain?

Very. Loading and take-out are manual, controls are basic pneumatic/electric, and wear parts are standard and easy to buy. Most operators are productive within a day of training.
