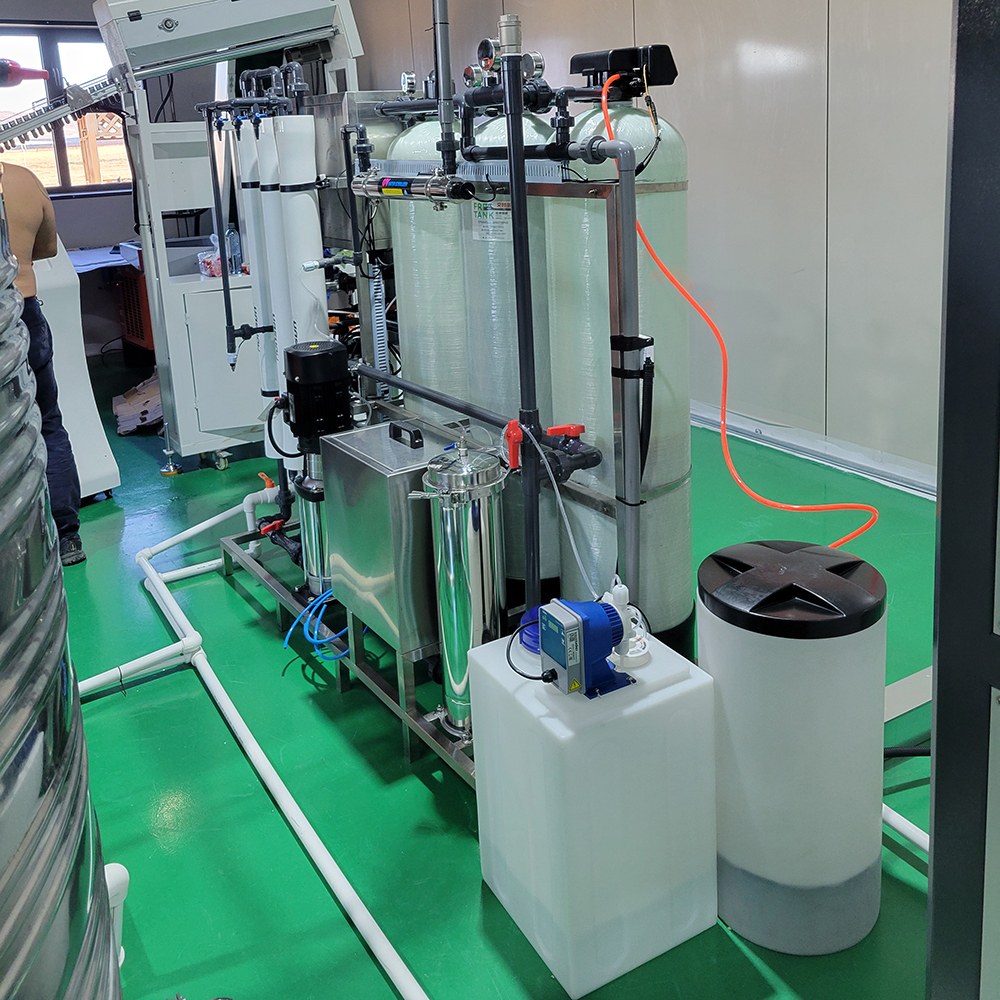

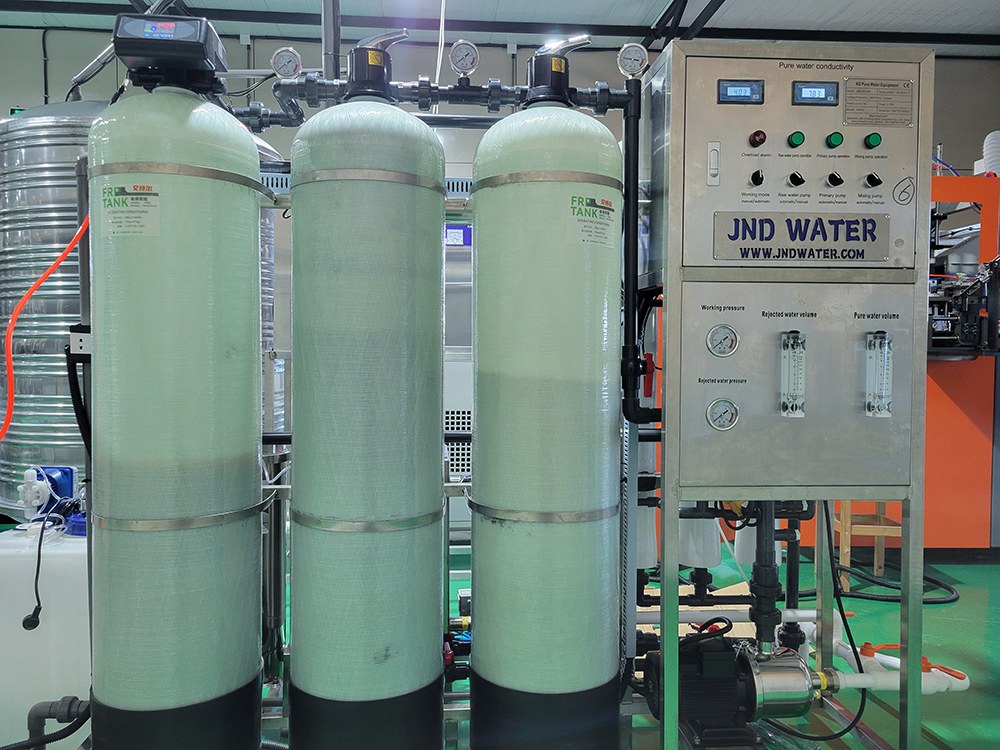

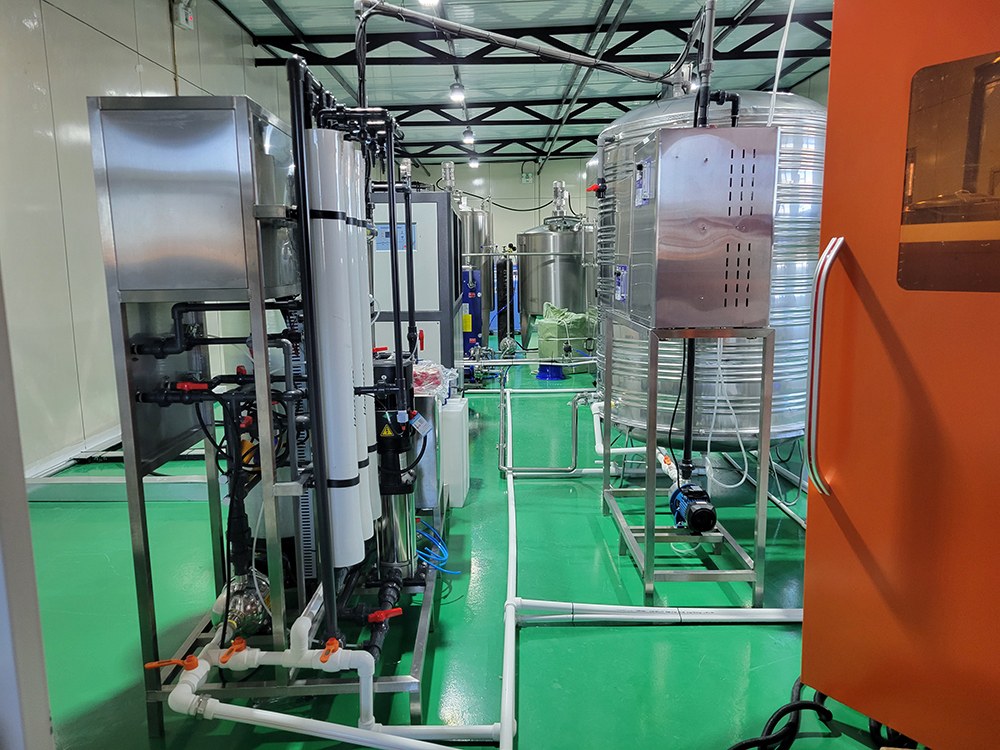

Pure Water Commercial RO Treatment Equipment JNDTECH 1-10 Tons
JNDTECH pure water treatment equipment: multi-stage RO system for bottled & barrel water. 1–10 TPH, ≥99% desalination, PLC auto control. Turnkey plant with install. Get quote.
Send InquiryProduct Description
Pure Water Treatment Equipment — Multi-Stage RO System for Bottled & Barrel Water
JNDTECH pure water treatment equipment is a complete reverse-osmosis (RO) water purification system engineered for bottled water plants, barrel (5-gallon) water stations, beverage and food factories. With multi-stage pretreatment, high-rejection RO membranes and PLC automatic control, it delivers stable, food-grade pure water at 1–10 TPH with desalination rate ≥99%.
Key Features
- Multi-stage pretreatment — quartz sand filter + activated carbon filter + automatic water softener remove suspended solids, chlorine, color and scale before RO.
- High-rejection RO membrane — imported membrane elements with desalination rate ≥99%, output conductivity <10 μS/cm (meets bottled pure water standard).
- Food-grade construction — SS304 / SS316L stainless steel tanks, pipelines and membrane housings, hygienic and corrosion-resistant.
- PLC + touchscreen automatic control — one-click start/stop, automatic flushing, low-pressure and overload protection.
- Online conductivity monitor — real-time water quality display with alarm on out-of-spec output.
- Built-in CIP cleaning system — periodic membrane cleaning extends membrane life and keeps flux stable.
- Energy-saving high-pressure pump — vertical multistage centrifugal pump, low noise and stable pressure.
- Modular expansion — parallel racks to scale capacity from 1 TPH up to 10 TPH or more.

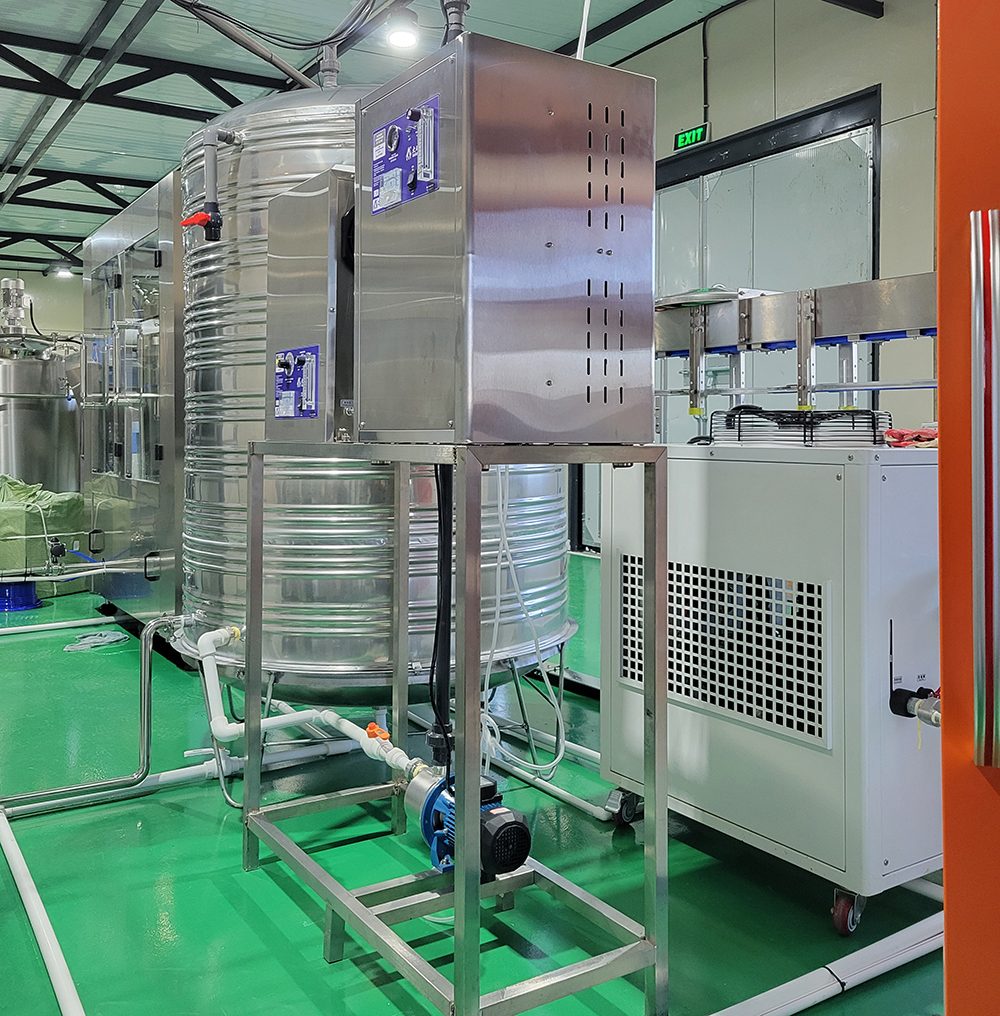

- Optional sterilization — UV sterilizer and ozone generator for post-RO bacteria control.
- Turnkey service — integrated with your filling line, with on-site installation, commissioning and operator training.
Technical Parameters
| Model | Capacity | Recovery Rate | Desalination Rate | Power | RO Membrane | Dimensions (mm) |
|---|---|---|---|---|---|---|
| JND-RO-1T | 1000 L/H | ≥50% | ≥99% | 2.2 kW | 4040 × 2 | 1500×800×1800 |
| JND-RO-5T | 5000 L/H | ≥50% | ≥99% | 3.0 kW | 4040 × 4 | 2000×1000×1800 |
| JND-RO-10T | 10000 L/H | ≥55% | ≥99% | 5.5 kW | 8040 × 4 | 2500×1200×2000 |
Specifications above are typical values for standard RO systems — confirm with your actual model nameplate before publishing.
How It Works
Raw water → raw water tank → booster pump → quartz sand filter → activated carbon filter → water softener → security (5μm) filter → high-pressure pump → RO membrane → pure water tank → (UV / ozone sterilization) → point of use. The RO membrane rejects dissolved salts, bacteria and organics under pressure, while the PLC controls the whole process automatically with automatic flushing and CIP.
Applications
- Bottled pure / mineral water production lines
- 5-gallon (18.9L) barrel water stations
- Beverage and juice dilution water
- Food processing and brewery
- Pharmaceutical and cosmetic pure water
- Laboratory and electronic-grade make-up water
Why Choose JNDTECH
Shenzhen JNDTECH has 17 years of experience in water and beverage filling lines, with equipment supplied to 125 countries and 450+ turnkey plants delivered. Our pure water treatment equipment is built to food-grade standards, integrated seamlessly with JNDTECH blow molding and filling machines, and backed by overseas engineer installation and lifetime technical support.
Related Products
- Complete Water Bottling Plant (Turnkey Guide)
- Pure Mineral Water Bottle Filling Machine
- Water Bottle Blow Molding Machine
- Semi-Auto 5 Gallon PET Blow Molding Machine
FAQ
What capacity range do you offer?
Standard models cover 0.5–10 TPH (500–10,000 L/H). Larger capacities are available by parallel rack configuration — tell us your daily water demand and we size the system.
How pure is the output water?
With single-stage RO the output conductivity is typically <10 μS/cm and desalination rate ≥99%, meeting the Chinese and international bottled pure water standards. Dual-stage RO can reach higher purity for pharmaceutical use.
Do you provide installation and training?
Yes. We offer turnkey service: piping, electrical connection, commissioning and on-site operator training, plus remote support after handover.
What pretreatment is included?
Every system includes quartz sand filter, activated carbon filter and automatic water softener as standard; security filter and CIP are built in. Iron/manganese or Ultrafiltration stages can be added for poor raw water.
Can it be integrated with my existing filling line?
Absolutely. The RO system is designed to feed JNDTECH filling and blow molding machines directly, and we can match capacity and layout to your current line.
