Self-Adhesive Labeling Machine | JNDTECH Sticker Labeler 2000–8000 BPM
JNDTECH self-adhesive labeling machine for round & flat bottles. 2000–8000 BPM, ±1mm accuracy, no glue, quick changeover. For water, beverage, cosmetic. Get quote.
Send InquiryProduct Description

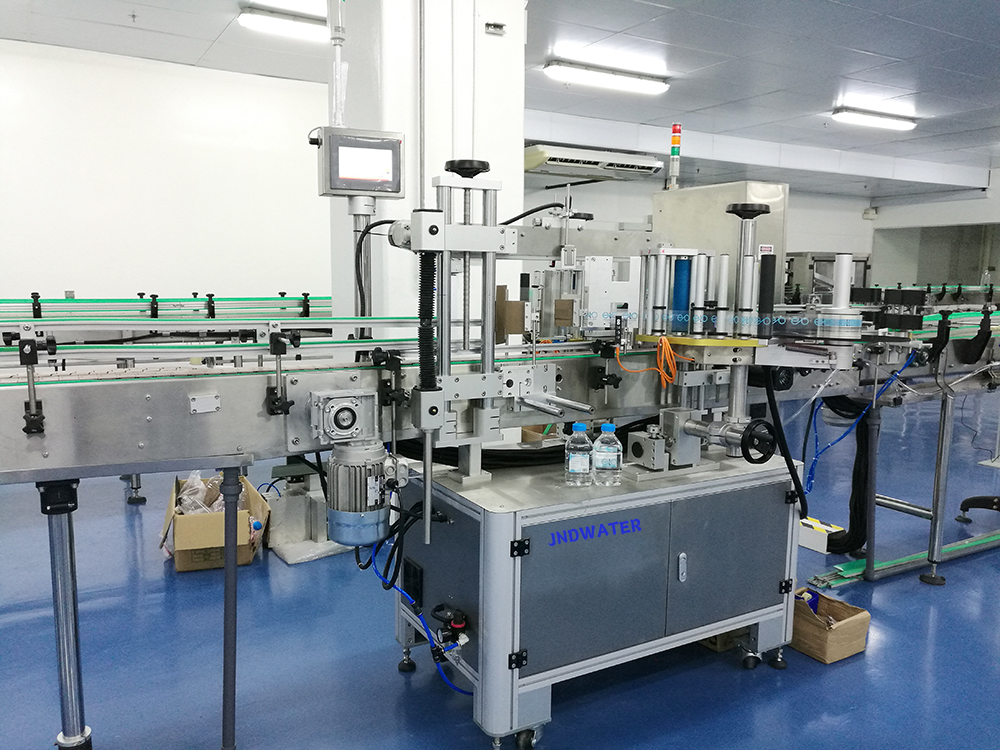

Self-Adhesive Labeling Machine — Glue-Free Sticker Labeler for Round & Flat Bottles
JNDTECH self-adhesive labeling machine (also called pressure-sensitive / sticker labeler) applies pre-printed self-adhesive labels to bottles without any glue or water — clean, fast and easy to change over. Suitable for round, square and flat containers in bottled water, beverage, cosmetic, food and pharmaceutical lines, it runs 2000–8000 bottles per minute with ±1 mm labeling accuracy.
Key Features
- Glue-free labeling — uses self-adhesive (pressure-sensitive) labels, no cold glue or hot-melt adhesive, no overflow or cleaning, hygienic and low maintenance.
- High accuracy — servo / stepper driven labeling head with ±1 mm position accuracy for neat, consistent appearance.
- Photoelectric detection — bottle and label sensors synchronize labeling with the conveyor, no missing or double labels.
- Versatile containers — handles round, square and flat bottles by quick fixture change; optional wrap-around, front-back and top labeling.
- Quick changeover — tool-free guide adjustment and recipe memory shorten format switch time between SKUs.
- PLC + touchscreen — intuitive HMI, counting, fault alarm and speed control; easy for operators.
- Stainless steel frame — SS304 frame and conveyor, food-grade and corrosion-resistant for wet filling environments.
- Integrated coding — optional inkjet / TTO coder mounts inline to print date and batch on the label.
- Line synchronization — can be linked with JNDTECH filling and capping machines for a continuous monoblock or stand-alone cell.
- Turnkey support — supplied with installation, commissioning and operator training, plus spare parts and remote service.
Technical Parameters
&th>Power| Model | Capacity | Label Size (W×L) | Bottle Dia. | Accuracy | Dimensions (mm) | |
|---|---|---|---|---|---|---|
| JND-100 | ≤2000 BPM | 10–120 × 20–300 mm | 30–120 mm | ±1 mm | 1.0 kW | 2000×900×1400 |
| JND-200 | ≤4000 BPM | 10–150 × 20–350 mm | 30–130 mm | ±1 mm | 1.5 kW | 2400×1000×1500 |
| JND-300 | ≤8000 BPM | 10–180 × 20–400 mm | 30–150 mm | ±1 mm | 2.2 kW | 2800×1100×1600 |
Specifications above are typical values for standard self-adhesive labelers — confirm with your actual model nameplate before publishing.
How It Works

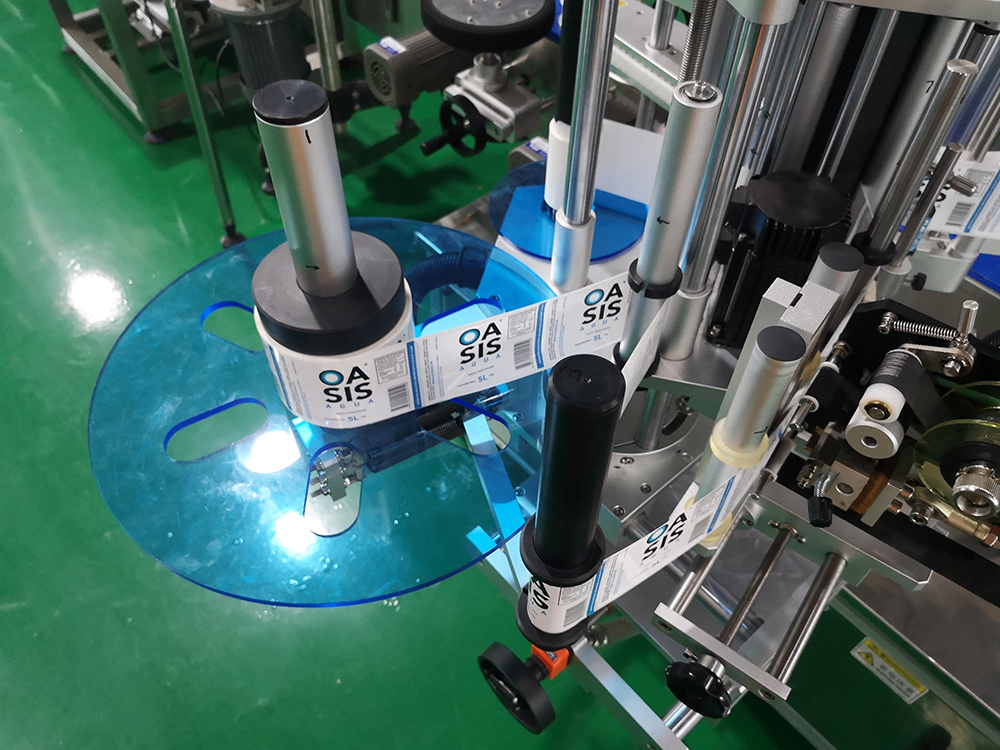

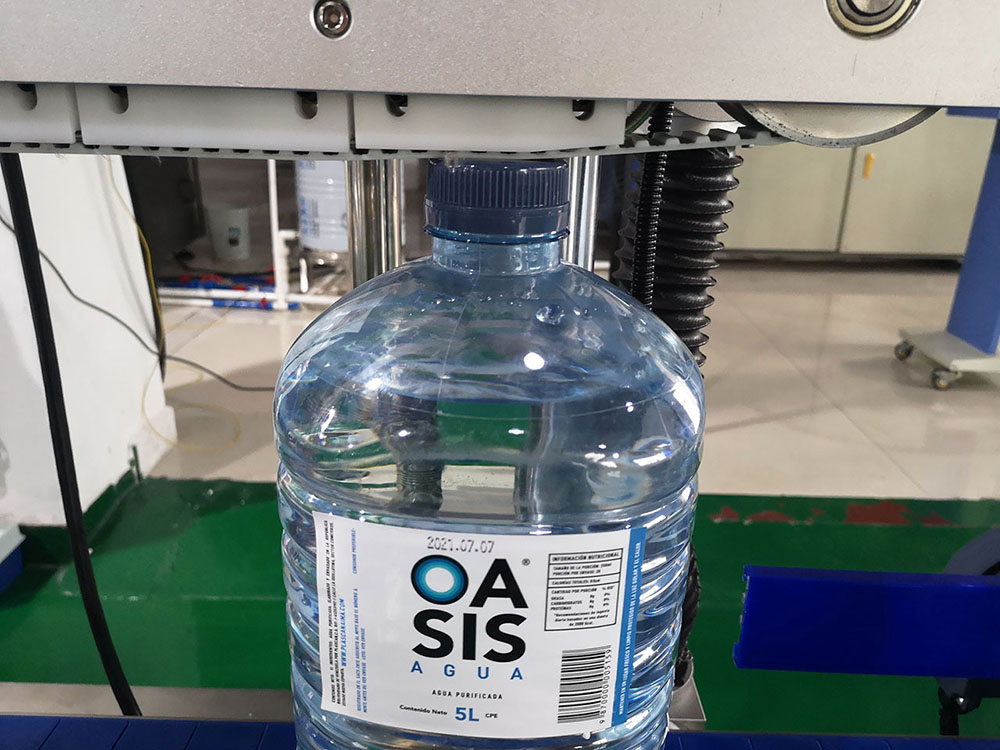

Bottles conveyed in → divider spaces bottles evenly → photoelectric sensor detects each bottle → labeling head peels the self-adhesive label from the backing paper and applies it onto the bottle → pressing belt / brush smooths the label to avoid bubbles → labeled bottle discharged. The whole process is glue-free: the label sticks by its own adhesive, so there is no glue tank, no dripping and minimal cleanup.
Applications
- Bottled water and beverage (round PET bottles)
- Cosmetic and personal-care jars / bottles
- Food jars, sauces and condiments
- Pharmaceutical and supplement bottles
- Daily-chemical flat and square containers
Self-Adhesive vs Glue Labeling — Which to Choose?
If you want clean, fast changeover and no glue mess, choose this self-adhesive labeler — it suits most modern PET / glass lines. If you run very high-speed glass lines with wrap-around paper labels, cold-glue or hot-melt systems may fit; contact JNDTECH and we match the right solution to your bottle and label.
Why Choose JNDTECH
Shenzhen JNDTECH has 18 years of experience in beverage and packaging lines, with equipment supplied to 125 countries and 450+ turnkey plants delivered. Our self-adhesive labeling machine is built to food-grade standards, integrates with JNDTECH filling and capping machines, and is backed by overseas engineer installation and lifetime technical support.
Related Products
- Complete Water Bottling Plant (Turnkey Guide)
- Pure Mineral Water Bottle Filling Machine
- Water Bottle Blow Molding Machine
- Carbonated Drink Filling Machine
FAQ
What bottle shapes can it label?
Round, square and flat containers within the diameter / width range; wrap-around, front-back and top labeling are available by optional fixtures. Send us your bottle drawing and we confirm compatibility.
Does it need glue?
No. It is a self-adhesive (pressure-sensitive) labeler — the label sticks by its own adhesive, so there is no glue tank, no dripping and almost no cleaning.
What speed can it run?
Standard models cover up to 2000 / 4000 / 8000 bottles per minute. Higher speeds are available on request; tell us your line speed and we size the model.
Can it print date / batch on the label?
Yes. An inline inkjet or thermal-transfer coder can be mounted to print production date and batch code on the label during labeling.
Can it connect to my filling line?
Absolutely. The labeler synchronizes with JNDTECH filling and capping machines, working as a stand-alone cell or part of a continuous line.
