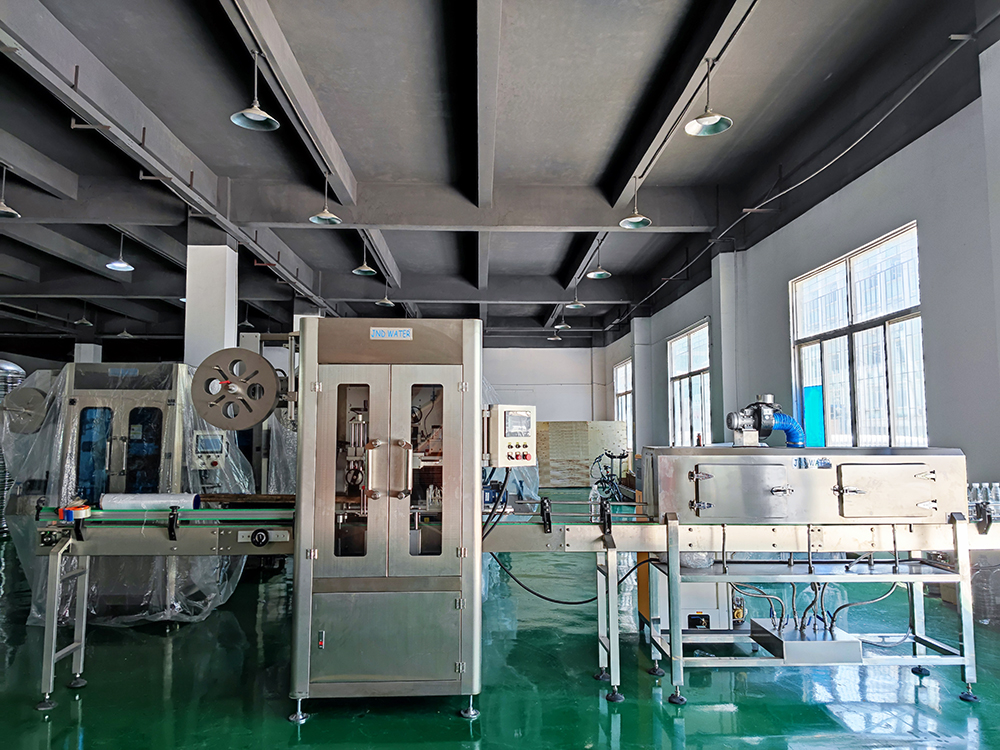

Shrink Sleeve Machine

Product Description

1. Product introduction
Jndwater series shrink sleeve machine is widely used in juice, tea beverage, dairy products, pure water, beer, condiments, cosmetics, food, medicine and other industries to put labels on bottlenecks or bottles.

2. Bottled Water Sleeve Labeling Machine Product features
•Independent feeding material shelf: the position of the material shelf is optional at will.
•All-cover type stainless steel host machine:the whole machine is waterproof as well as rustless.
•Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life
•Single positioning centre guide pillar: a more stable for label delivery.
•Synchronous bottle divider: a more stable transmission for bottle
•Botton set of label brush: a more precision for casting label.
•Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
•Push-button control cabinet: a more humanized operation.

3.Sleeve Machine Product functions
Automatic label delivery: Automatic label delivery, reducing manual intervention.
Automatic gluing: Cold glue is applied to the label through a precisely controlled gluing device.
Automatic labeling: The rotating labeling head attaches the label to the container surface to ensure that the label is flat and firm.
Real-time monitoring: Equipped with a monitoring system to monitor the labeling process in real time to ensure stable quality.
Automatic label change: Optional automatic label change function to achieve non-stop label change and improve production efficiency.

4. Shrink Label Machine Technical specifications

5. How does the shrink sleeve label machine work?

​Conveying and positioning: The bottle enters the equipment through the conveyor belt, and the photoelectric sensor triggers the label sleeve signal.
​Label cutting: The servo system accurately cuts the label and sleeves it on the bottle.

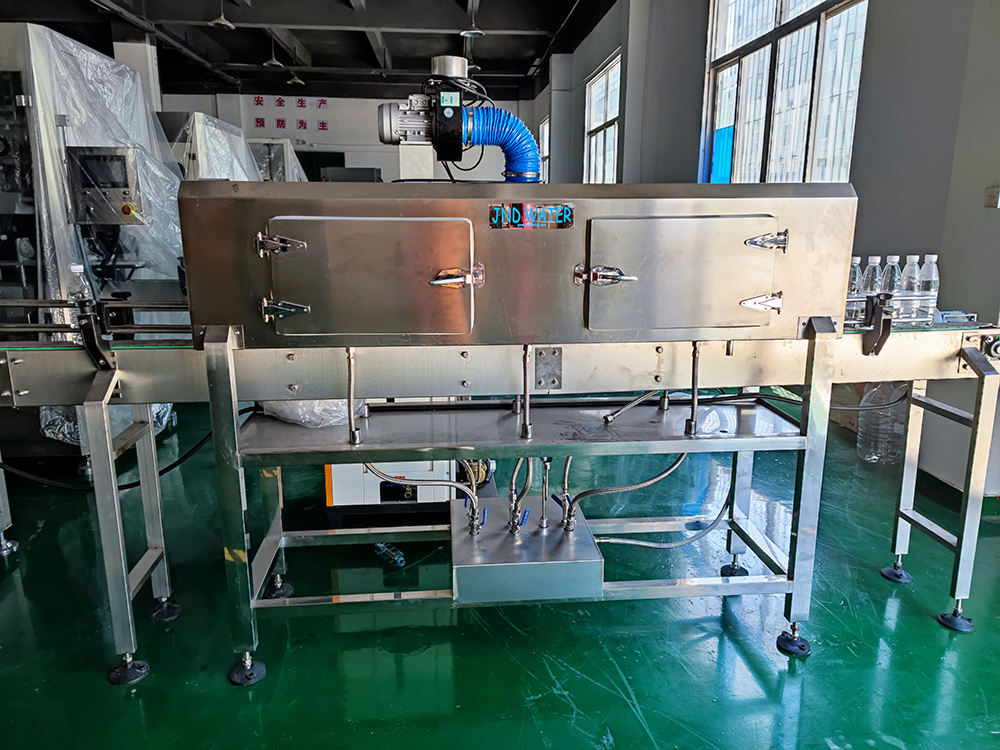

​Heat shrinkage shaping: The bottle enters the steam or hot air shrinking oven (180-250℃), and the label shrinks and fits under the heat.
​Cooling output: The cooling system quickly shapes and the finished product is conveyed to the next process.

6. Applications
​Beverage industry: bottle labels for mineral water, juice, carbonated drinks, dairy products, etc.
​Daily chemicals: shampoo, cosmetics, detergent bottle packaging.
​Medical field: anti-counterfeiting labels for medicine bottles and disinfectant containers.

7.FAQs
Q: What should I do if the label wrinkles after shrinking?
A: Check the steam pressure (recommended 0.4-0.7MPa) and temperature uniformity, and make sure the label material matches the shrinkage parameters.
