Shrink Sleeve Labeling Machine | JNDTECH 2000–12000 BPH
JNDTECH shrink sleeve labeling machine for 360° full-body labels & tamper-evident bands on PET & glass bottles. 2000–12000 BPH,
Send InquiryProduct Description

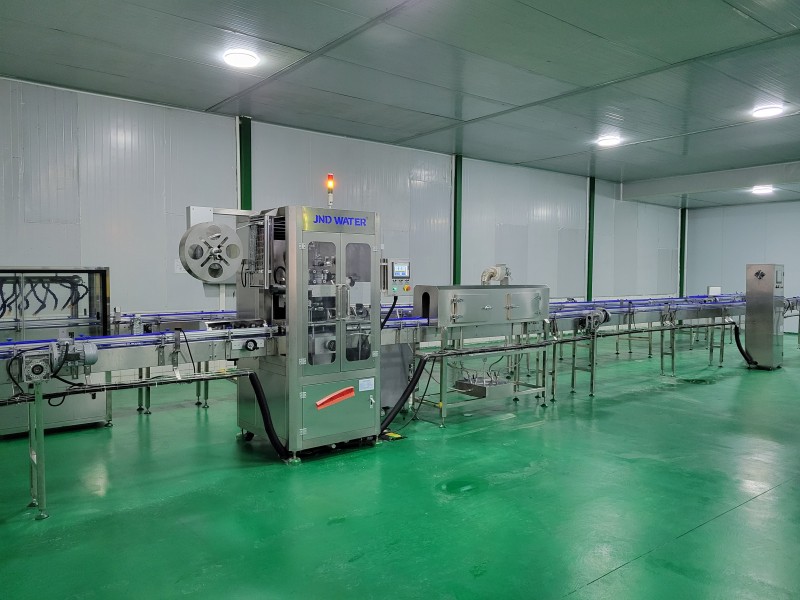

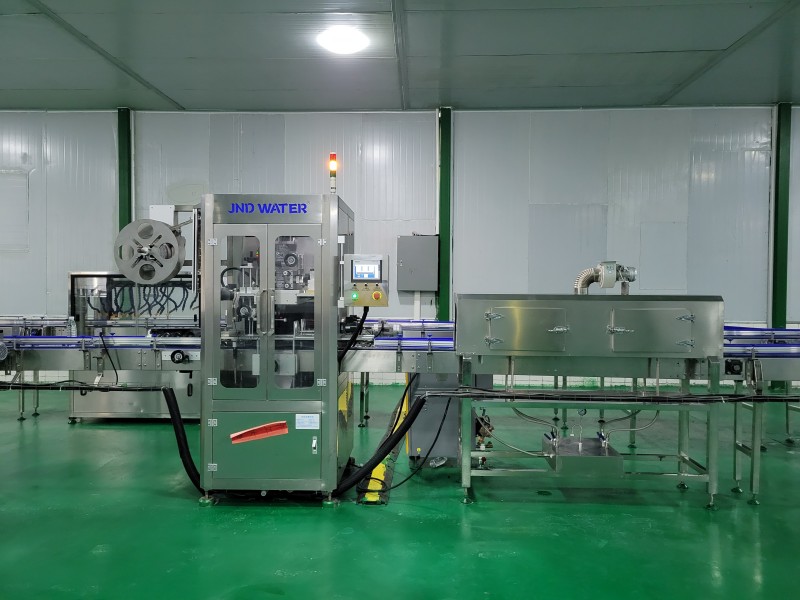

Shrink Sleeve Labeling Machine — 360° Full-Body Labels & Tamper-Evident Bands
JNDTECH shrink sleeve labeling machine applies PVC/PETG shrink sleeves around bottles, cups and jars for 360° full-body decoration — or short tamper-evident bands around the cap. Running at 2000–12000 BPH, it uses servo-driven sleeve cutting and a steam or hot-air tunnel for precise, wrinkle-free shrinking on PET and glass containers.
Key Features
- 360° full-body coverage — the sleeve wraps the entire container, leaving room for vivid designs and large branding that glue labels cannot offer.
- Tamper-evident band function — shrink bands over the cap act as a security seal, deterring tampering before the consumer opens the bottle.
- Servo-driven sleeve feeding & cutting — precise length cutting with fast changeover between label sizes.
- Steam or hot-air shrinking tunnel — even heat shrinks the film tightly against the container without wrinkles or burn marks.
- 2000–12000 BPH output — matches medium and large water, beverage and dairy lines.
- PET, glass, and cup formats — handles round containers from 30–125 mm diameter.
- Photoelectric registration — detects print marks to keep sleeve position consistent bottle after bottle.
- PLC + touchscreen control — recipe storage, counters and fault alarms for stable, traceable runs.
- Quick changeover — change parts for bottle diameter and sleeve length swap in minutes.
- Turnkey JNDTECH integration — links directly to fillers and packers as part of a complete line.
Technical Parameters
| Model | Capacity | Bottle Diameter | Sleeve Length | Shrinking |
|---|---|---|---|---|
| JND-150 | 2000–4000 BPH | 30–90 mm | 30–200 mm | Steam / hot air |
| JND-250 | 5000–8000 BPH | 30–125 mm | 30–280 mm | Steam / hot air |
| JND-450 | 9000–12000 BPH | 30–125 mm | 30–280 mm | Steam / hot air |
Note: figures are typical for shrink sleeve labeling machines. Confirm against your unit's nameplate before publishing.
How It Works — Cut, Apply, Shrink
A roll of pre-printed shrink film is fed into the machine, where servo rollers pull it over the cutting drum and a knife cuts each sleeve to the programmed length. Each sleeve is opened and dropped over the bottle as it passes, then the bottle travels through a steam or hot-air tunnel. The heat makes the film contract tightly around the container, locking in shape — full-body decoration or a cap band in one pass.
Applications
- Bottled water and beverage 360° branding
- Dairy, juice and tea cups & bottles
- Tamper-evident bands on water / juice caps
- Cosmetic and household containers
- Any full-wrap or security-seal requirement
Shrink Sleeve vs. Self-Adhesive Labeling
A common question: which labeling method should I use? Self-adhesive (pressure-sensitive) labels give precise spot labels, quick changeover and no heat — see our Self-Adhesive Labeling Machine. Shrink sleeves win when you need 360° full-body coverage, large graphics or tamper-evident seals. Many water and beverage lines run both — sleeve for the body, plus a shrink band for the cap.
Why Choose JNDTECH
JNDTECH (Shenzhen) has delivered water and beverage lines to 125+ countries since 2008. Our shrink sleeve labeling machines are built for continuous food-grade production, backed by a 17-year track record in turnkey plants. Every machine ships with installation, commissioning and operator training so your line reaches rated speed from day one.
Related Products
- Complete Water Bottling Plant (Turnkey Guide)
- Bottled Water Filling Machine
- Self-Adhesive Labeling Machine — for spot labels
- Fully Automatic PET Blow Molding Machine
FAQ
Q1: What is the difference between shrink sleeve and self-adhesive labeling?
Self-adhesive applies a spot label with adhesive backing. Shrink sleeve wraps a film around the full container and shrinks it with heat, giving 360° coverage and optional tamper-evident bands.
Q2: Can it apply tamper-evident bands?
Yes. Short sleeves over the cap act as a security seal — standard on bottled water and juice lines.
Q3: What bottle sizes can it handle?
Round containers from 30–125 mm diameter; sleeve length from 30–280 mm depending on model. Change parts swap sizes in minutes.
Q4: Does it need steam or hot air?
Both options are available. Steam tunnels suit PET well; hot-air tunnels are chosen where steam supply is limited.
Q5: What output can it reach?
