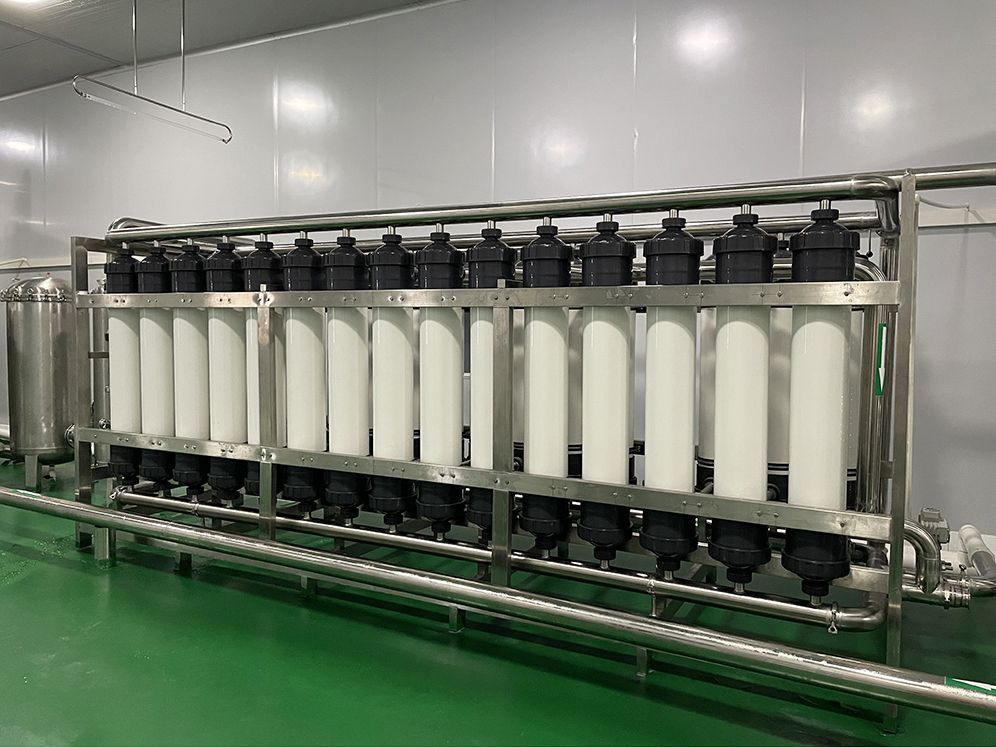

Ultrafiltration Machine
Ultrafiltration equipment is widely used in sewage recycling, surface water treatment, domestic drinking water treatment and seawater desalination.
| Model | JND UF 1000 |
|---|---|
| Capacity of pure water | 1000-10000LPH |
| Power Supply | AC220V/AC380V/415V±5% 50Hz/60Hz |
Product Description
1. Product introduction
Jndwater Ultrafiltration equipment is widely used in sewage recycling, surface water treatment, domestic drinking water treatment and seawater desalination. Applicable to mineral water, medicine, food, pure water, ultrapure water, fermentation and other industries The output of Jndwater uf water treatment machine can reach 1000-100,000LPH
2.Ultrafiltration water System Product features:
1. The water quality will not be changed, and the ultrafiltration technology will not cause changes in temperature and PH, which can prevent the denaturation, deactivation and autolysis of biological macromolecules
2. Food grade material, all the wading parts are made of food grade stainless steel, and the thickened pipes can be used with confidence
3. It is easy to operate without adding any chemical reagents, and the cost is low
4. Long service life, the equipment adopts domestic and imported high-quality accessories, and can operate normally for more than 8-10 years
4. Product functions
Remove impurities: thoroughly filter out harmful substances such as bacteria, rust, colloids, etc. in the water, and retain trace elements and minerals in the water that are beneficial to the human body.
Pretreatment: As a reverse osmosis pretreatment, it effectively reduces the pollution of the reverse osmosis membrane and reduces the frequency of chemical cleaning.
Water quality improvement: The turbidity of the effluent can reach ≤0.5NTU, and various indicators such as microorganisms can meet the requirements.
5.Technical specifications
| Model | JND UF 1000 |
| Capacity of pure water | 1000-10000LPH |
| Power Supply | AC220V/AC380V/415V±5% 50Hz/60Hz |
| Callback Ratio | ≥85% |
| Rated Operating Pressure | 0.3Mpa |
| Temperature of Raw Water | 1-45℃ |
| PH of Raw Water | 1-14 |
6.How does the mineral water equipment work?
Ultrafiltration is a membrane separation process based on the principle of separation and pressure as the driving force. The filtration accuracy is within the range of 0.005-0.01μm, which can effectively remove particles, colloids, bacteria, heat sources and high molecular organic substances in water. The ultrafiltration process has no phase conversion and operates at room temperature. It is particularly suitable for the separation of heat-sensitive substances and has good heat resistance, acid and alkali resistance and oxidation resistance. It can be used continuously for a long time under the conditions of below 60℃ and pH 2-11.
7.FAQs
Q:What is the filtration accuracy of ultrafiltration equipment?
A:The filtration accuracy of ultrafiltration equipment is within the range of 0.005-0.01μm, which can effectively remove particles, colloids, bacteria, heat sources and high molecular organic substances in water.
