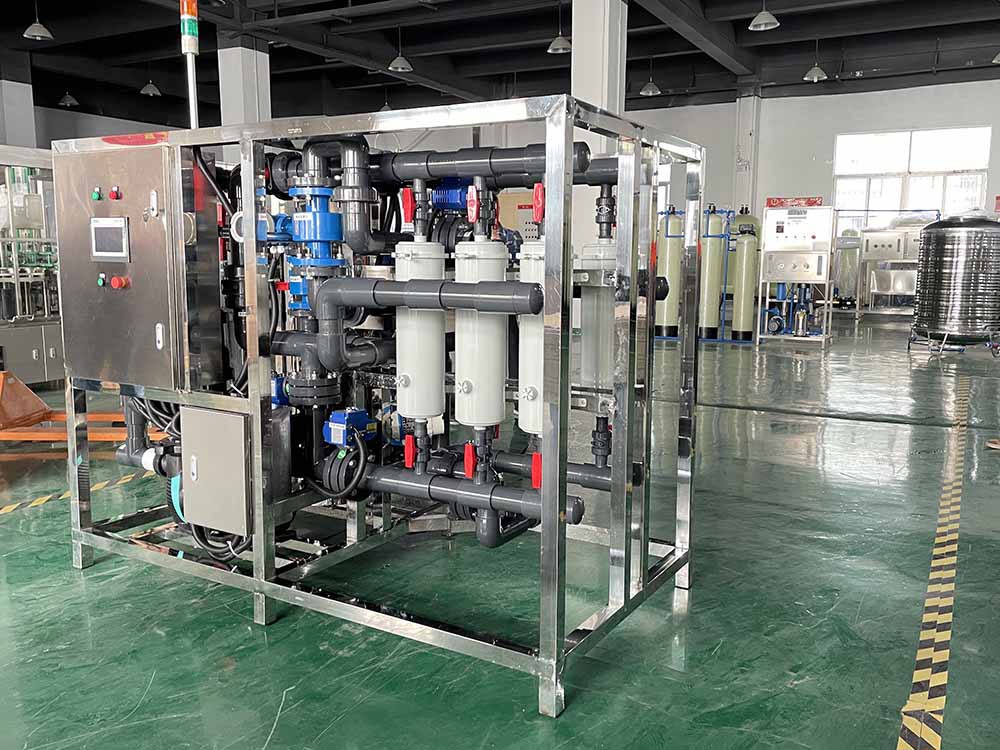

Mineral Water Treatment Equipment | JNDTECH UF System 1–10 TPH
JNDTECH mineral water treatment equipment keeps natural minerals: UF filtration + ozone sterilization for bottled mineral water. 1–10 TPH
Send InquiryProduct Description
Mineral Water Treatment Equipment — Keep Natural Minerals, UF Filtration for Bottled Water
JNDTECH mineral water treatment equipment is designed for natural spring, mountain and mineral water bottling — it purifies without removing beneficial minerals. Using ultrafiltration (UF) / nanofiltration (NF) plus ozone sterilization, it removes bacteria, colloids and suspended solids while keeping the natural mineral profile, delivering 1–10 TPH of safe, great-tasting bottled mineral water.
Key Features
- Mineral-preserving process — no reverse osmosis demineralization; UF/NF keeps calcium, magnesium and other natural minerals in the water.
- Ultrafiltration membrane — 0.01 μm pore size removes bacteria, colloids, rust and turbidity with high flux and easy backwash.
- Optional nanofiltration (NF) — gently adjusts hardness and partially softens without stripping minerals, ideal for high-hardness source water.
- Ozone sterilization — instead of chlorine, ozone kills bacteria with no taste/residue, protecting the natural spring-water flavor.
- Food-grade construction — SS304 / SS316L stainless steel tanks, pipelines and membrane housings, hygienic and corrosion-resistant.
- PLC + touchscreen automatic control — automatic backwash, ozone dosing and CIP, with low-pressure and overload protection.
- Online quality monitor — real-time turbidity and residual-ozone display with alarm on out-of-spec output.
- High recovery rate — ≥90% water recovery (far higher than RO), low wastewater for spring-water sources.
- Optional mineralization — post-filter mineral cartridge to stabilize taste and TDS for consistent branding.
- Turnkey service — integrated with your filling line, with on-site installation, commissioning and operator training.
Technical Parameters
| Model | Capacity | Filtration | Ozone | Recovery | Power | Dimensions (mm) |
|---|---|---|---|---|---|---|
| JND-MW-UF-1T | 1000 L/H | UF 0.01 μm | 0–1.0 ppm | ≥90% | 1.5 kW | 1400×800×1800 |
| JND-MW-UF-2T | 2000 L/H | UF 0.01 μm | 0–1.0 ppm | ≥90% | 2.2 kW | 1900×1000×1800 |
| JND-MW-UF-5T | 5000 L/H | UF 0.01 μm | 0–1.0 ppm | ≥92% | 4.0 kW | 2400×1200×2000 |
Specifications above are typical values for standard UF mineral-water systems — confirm with your actual model nameplate before publishing.
How It Works
Raw (spring / source) water → raw water tank → booster pump → quartz sand filter → activated carbon filter → security (5μm) filter → UF membrane (or NF) → ozone mixing tank → (optional mineralization) → finished water tank → filling. The UF membrane physically sieves out microbes and particles while letting mineral ions pass, so the water keeps its natural composition; ozone provides final sterilization without chemical residue.
Applications
- Bottled natural / mineral water production
- Spring and mountain water bottling
- Natural flavored and soda water
- Village and community drinking water
- Hotels and restaurants with private water source
Mineral Water vs Pure Water — Which to Choose?
If your source is natural spring / mineral water and you want to keep the minerals and taste, choose this UF system. If your raw water is tap / well water and you need high-purity demineralized water (e.g. for electronics or low-TDS bottled water), use our RO pure water treatment equipment. Both integrate with JNDTECH filling lines.
Why Choose JNDTECH
Shenzhen JNDTECH has 17 years of experience in water and beverage filling lines, with equipment supplied to 125 countries and 450+ turnkey plants delivered. Our mineral water treatment equipment is built to food-grade standards, protects the natural mineral profile of your source, and is backed by overseas engineer installation and lifetime technical support.
Related Products
- Complete Water Bottling Plant (Turnkey Guide)
- Pure Water Treatment Equipment (RO System)
- Pure Mineral Water Bottle Filling Machine
- Water Bottle Blow Molding Machine
FAQ
How is this different from pure water (RO) equipment?
RO removes dissolved salts and most minerals for high-purity water; our mineral water system uses UF/NF and keeps natural minerals, only sieving out bacteria, colloids and turbidity. Choose by whether you want minerals kept or removed.
Will the minerals be preserved?
Yes. UF/NF membranes reject microbes and particles but pass mineral ions, so calcium, magnesium and the natural TDS of your source water are retained. An optional mineral cartridge can further stabilize taste.
What capacity range do you offer?
Standard models cover 0.5–10 TPH (500–10,000 L/H), expandable by parallel racks. Tell us your daily demand and source-water quality, we size the system.
Is ozone safe for drinking water?
Yes. Ozone is a recognized drinking-water disinfectant; it decomposes to oxygen with no chemical residue or off-flavor, which is why it is preferred over chlorine for natural mineral water.
Can it be integrated with my filling line?
Absolutely. The system is designed to feed JNDTECH filling and blow molding machines directly, with matched capacity and layout for your line.
