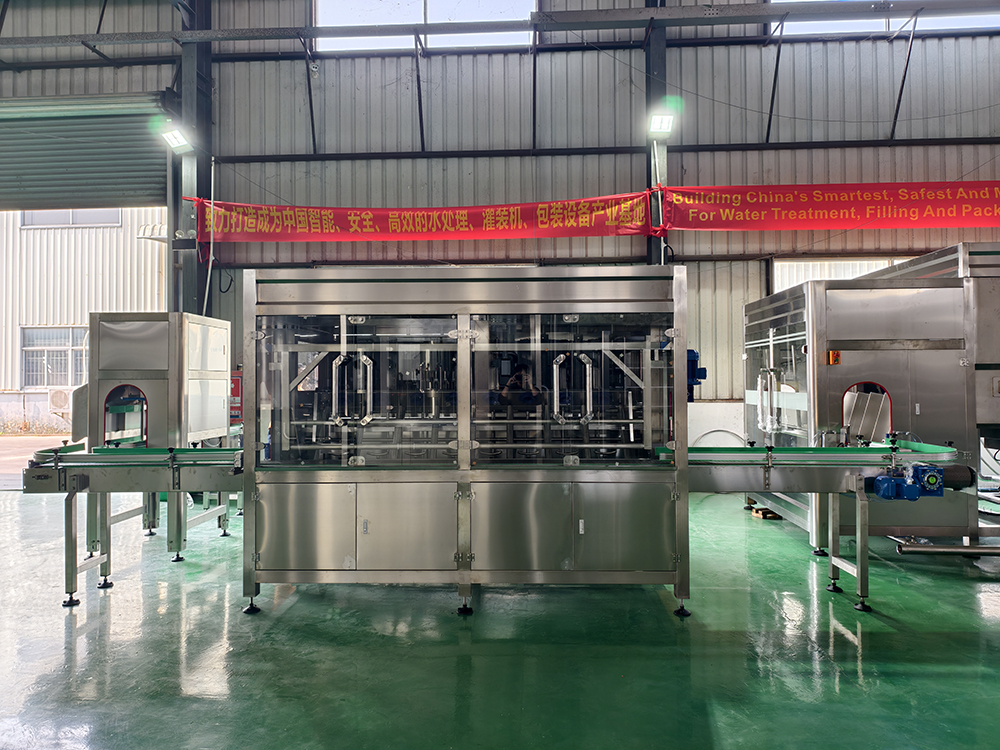

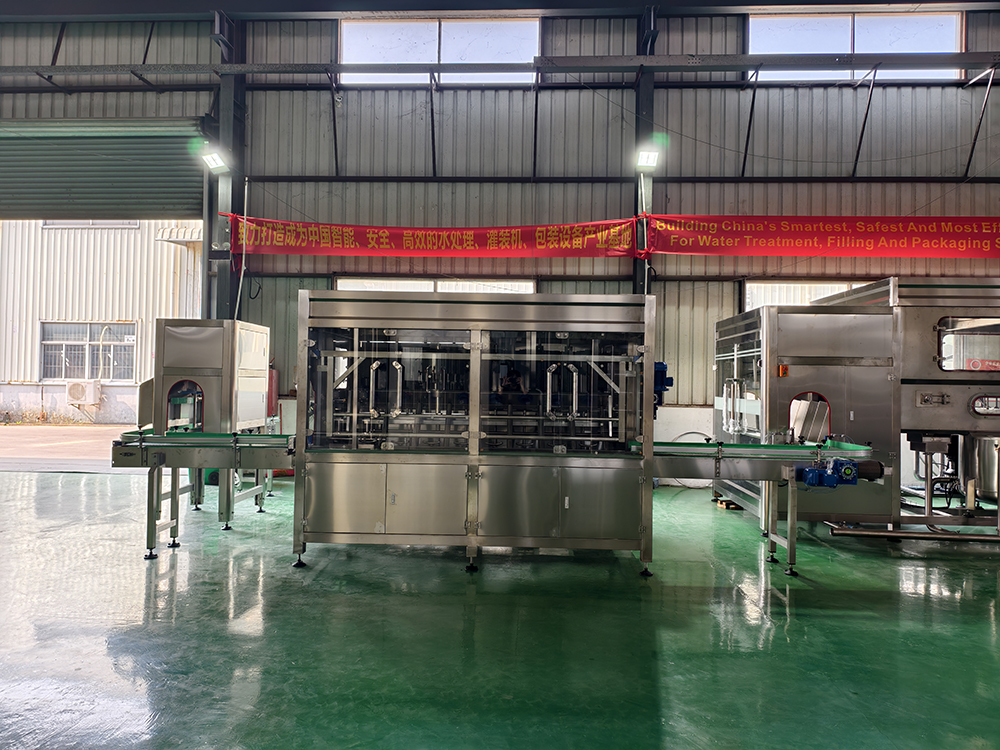

19 Liter 5 Gallon Water Bottled Filling Machine
5 Gallon Bottle Water Bottled Filling Machine is an automated equipment widely used in the filling of drinking water, mineral water, distilled water and other liquids
| JND100 | 120 |
|---|---|
| JND100 | 450 |
| JND100 | 1200 |
Product Description
Product Introduction
The Jndwater 19L 19 Liter Bottle Water Bottled Filling Bottling Machine is an automated equipment widely used in the filling of drinking water, mineral water, distilled water and other liquids. It integrates cleaning, filling and capping, and can efficiently and hygienically complete the filling of 5-gallon (about 19 liters) buckets. It is an ideal choice for bottled water production companies.
Product Features
High-speed filling: Able to quickly fill multiple 19lcontainers in a short period of time, improving productivity.
Precision filling system: Guarantees accurate filling volume, reduces water waste and ensures consistent product quality.
Sturdy structure: Made of heavy-duty materials to withstand the rigors of continuous use and industrial environments.
User-friendly operation: Features an intuitive control panel for easy operation and parameter adjustment.
Product Features
Multi-station cleaning: Ensures that each bottle is cleaned.
Filling water: Fills a precise amount of water into the container, whether it is purified water, mineral water or spring water.
Overflow prevention: Equipped with a reliable overflow prevention mechanism to avoid water overflow during the filling process.
Technical Specifications
| Model | JND100 | JND100 | JND100 | JND100 | JND100 | JND100 |
| Output( BPH) | 120 | 300 | 450 | 600 | 900 | 1200 |
| Voltage | AC220V/380V±5% 50HZ/60HZ | |||||
| Rated Power(kw) | 4.95 | 8.65 | 19.1 | 24.8 | 36 | 46 |
| Bottle size | 19L(5 gallon) | |||||
| Bottle size(mm) | Ф270×490×Ф56 | |||||
| Cap size(mm) | Ф58×40 (Tail: L×W=18×7.5) | |||||
| Air pressure(Mpa) | 0.5~0.6 | |||||
| N.W.(KG) | 300 | 445 | 950 | 1450 | 2000 | 2600 |
| Overall Dimension(MM) | 3245*500*1600 | 3820*800*1600 | 4390*1100*1760 3000*800*1760 | 4710*1520*1760 3220*800*1760 | 5100*1850*1760 3880*800*1760 | 6200*2060*2300 2000*1900*2500 |
How does a 19l water filling machine work?
First, the 19l container is placed on a conveyor and transported to a bottle washer for cleaning. Then, it is transported to the filling area for filling. Water is pumped into the container at a specified flow rate. Once the preset volume is reached, the filling stops automatically. Finally, the filled water bottle is transported to the capping & sealing mechanism to seal the 5-gallon cap.
Applications

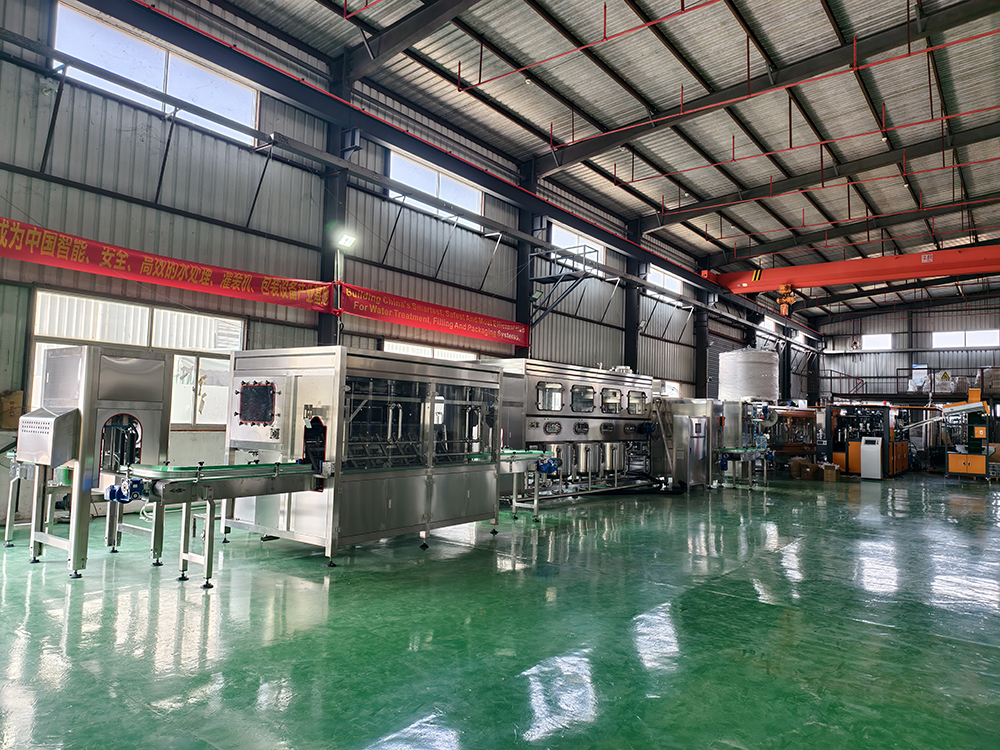

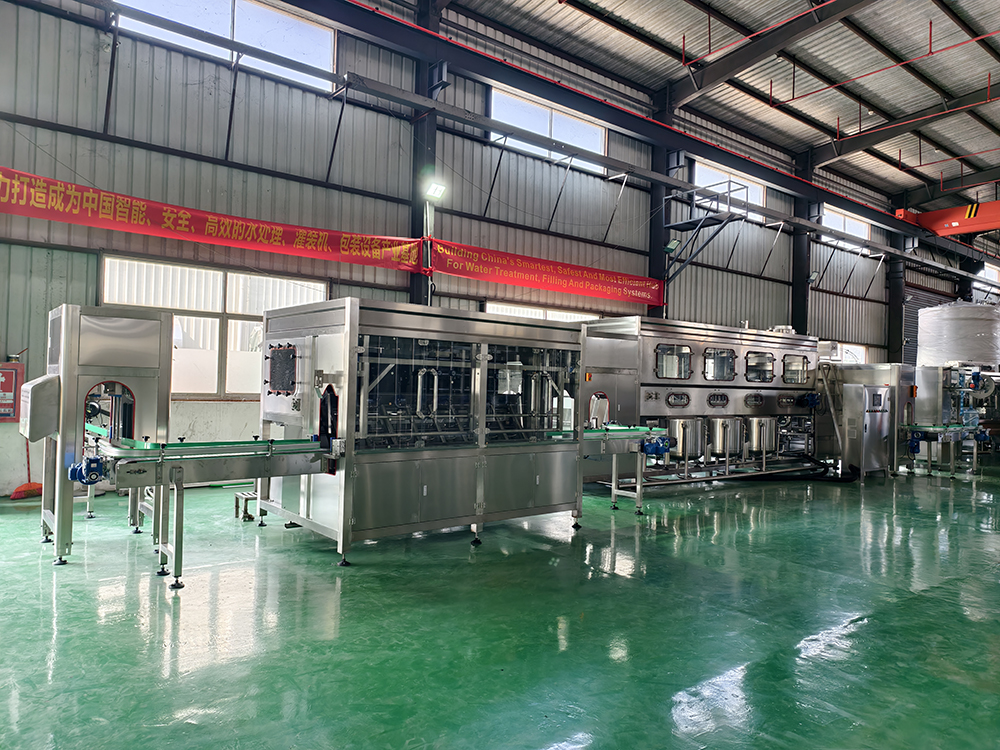

19l water filling machine plant.
20L barreled water manufacturer.
18.9L bottled water production line.
FAQ
How do I start a 19l bottled water filling machine factory business?
First do a market survey to determine what kind of bottled water you want to produce? Purified water, mineral water, distilled water? What is the output? Then find a factory building, water and electricity, and purchase 19 liter bottle water filling production line equipment.
