Glass Bottle Filling Machine 1000-10000 BPH JNDTECH

Product Description

Glass Bottle Filling Machine for Juice, Sauce, Wine and Carbonated Drinks

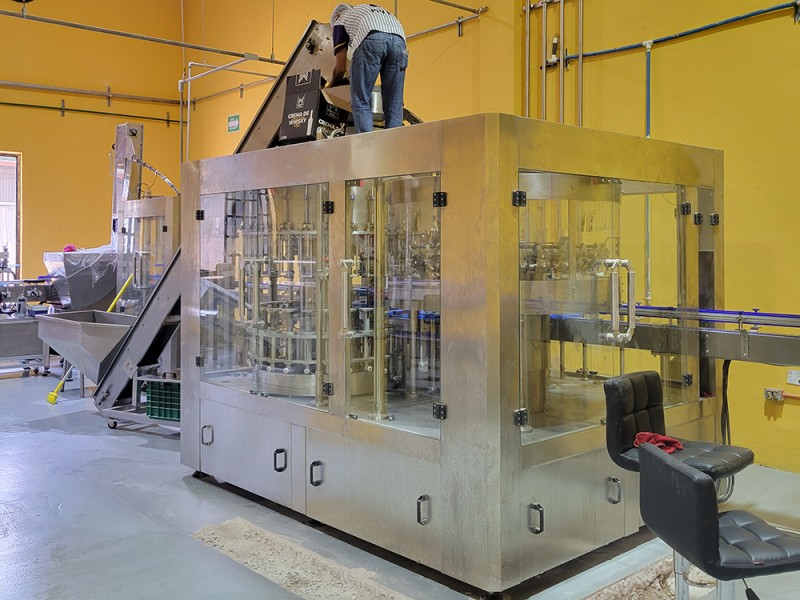

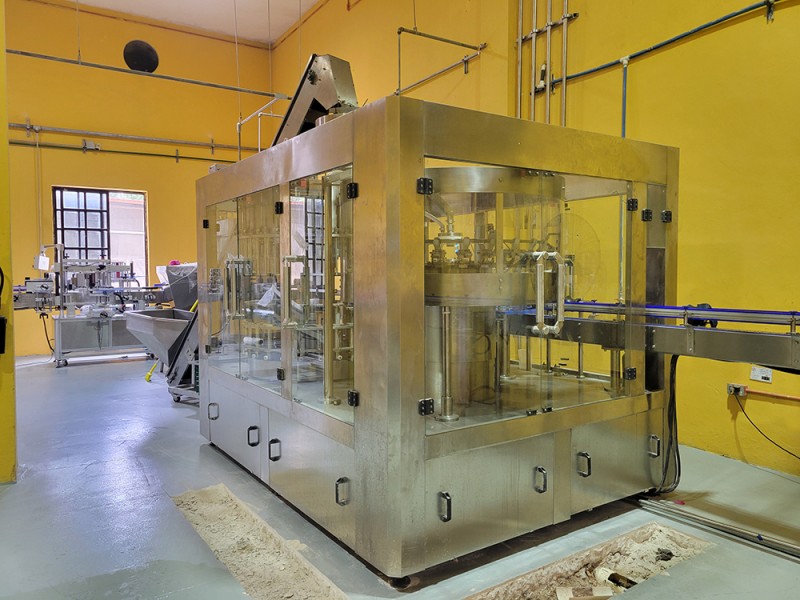

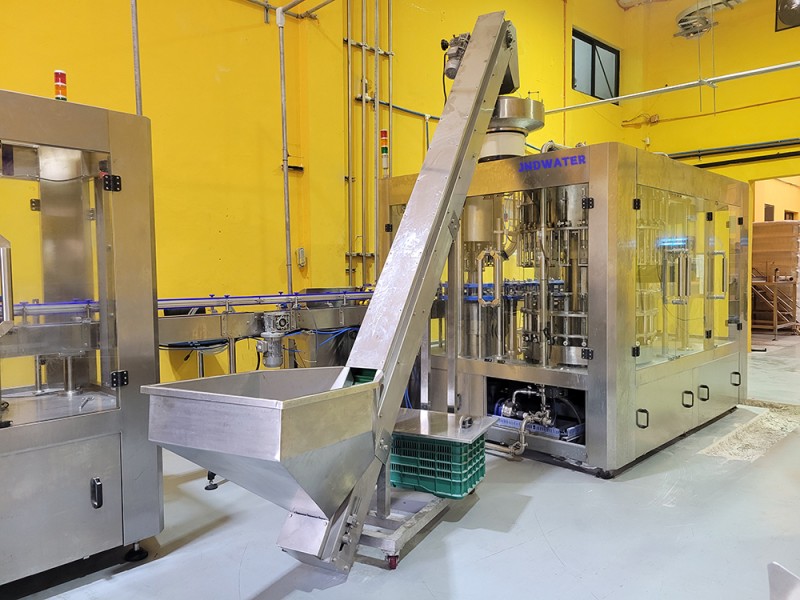

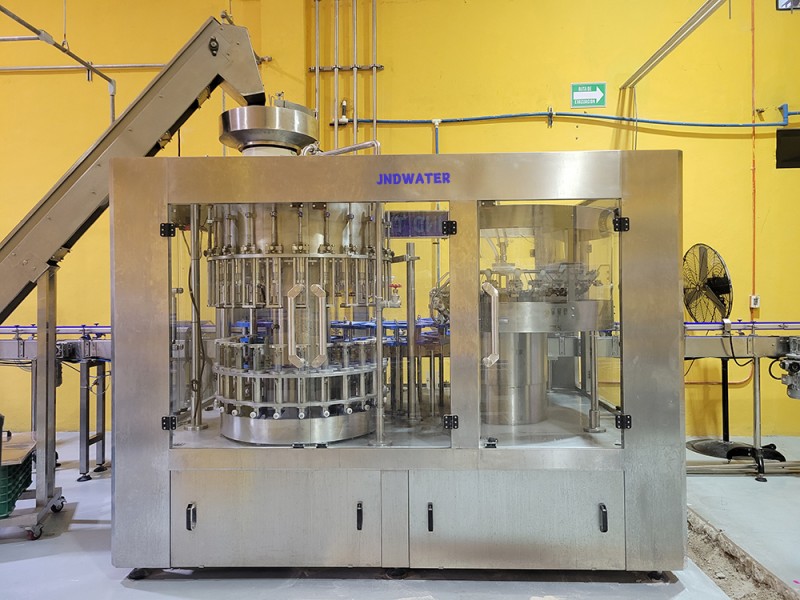

The JNDTECH glass bottle filling machine fills glass bottles from 200 ml to 2000ml at 1000-10000 BPH. It handles both still and carbonated products, including fruit juice, soy sauce, vinegar, mineral water, soda water, Chinese liquor (baijiu), red wine and whisky. Gravity filling suits still liquids, while isobaric (counter-pressure) filling keeps the gas in carbonated drinks. A separate bottle washing machine cleans returnable glass bottles before filling.

Filling Methods: Gravity and Isobaric

Glass bottles are refillable, so many producers reuse them. The filling unit can be configured for your product:

• Gravity filling: for still products like mineral water, juice, soy sauce and vinegar. Liquid flows by gravity to a consistent level, fast and gentle.
• Isobaric filling: for carbonated drinks such as soda water and sparkling juice. The bottle is pre-pressurized with CO2, so the drink fills without foaming and CO2 loss stays below 0.5 g/L.

Both methods run on the same machine frame with quick valve changeover for producers who switch between still and carbonated SKUs.

Capping Options: Crown, ROPP and Screw

The machine is delivered with the capping unit that matches your bottle and market:

• Crown cap: classic beer and soda closure, applied by a crown capper with controlled pressure.
• Aluminum ROPP cap: roll-on pilfer-proof cap, common for soy sauce, vinegar, juice and liquor bottles.
• Three-turn screw cap: plastic or aluminum twist cap, easy for consumers to open and reseal.

Changeover between cap types is done by swapping the capping head and adjusting the star wheel.

For wine and spirits, capping and sealing options can be configured to your bottle neck, including ROPP caps with anti-counterfeit features for liquor brands.

Separate Bottle Washing Machine

Glass bottles need strong cleaning because they return from the market with dust, labels and residue. The line uses a separate bottle washing machine, not an integrated rinser. The washer soaks, brushes and rinses each bottle in stages, so only clean, dry-ready bottles enter the filler. Keeping the washer independent gives you better wash quality and easier maintenance.

Build a Complete Glass Bottle Line

1. Bottle washing machine (soaking washer, separate unit)
2. Glass bottle filling machine (this unit, gravity or isobaric)
3. Capping machine (crown, ROPP or screw)
4. Labeling machine and inkjet coder
5. Packing: shrink wrap or carton packer, palletizer

Key Features

• 1000-10000 BPH capacity range, sized for small plants and large lines
• Gravity or isobaric filling, or both with quick valve changeover
• Crown cap, aluminum ROPP or three-turn screw capping options
• Food-grade SUS304 / SUS316 contact parts for sauce, vinegar and juice
• PLC and touchscreen control with recipe memory and fault alarm
• Accurate filling level with minimal product loss
• CIP ports for hygienic cleaning between batches

Technical Specifications

Applications

The glass bottle filling machine serves breweries, juice factories, condiment producers, distilleries and mineral water plants in markets where glass bottles are standard or returnable. Typical products: juice and nectars, soy sauce, vinegar, mineral water, soda water, carbonated soft drinks, Chinese liquor (baijiu), red wine and whisky.

For wine and spirits, the filling method can be set to volume-accurate gravity or low-pressure filling, so every bottle carries the same charge and the level meets export standards.

Why Choose JNDTECH

• Professional after-sales team with 24-hour response and a 1-year warranty on every machine.
• On-site installation, commissioning and operator training by our own engineers.
• ISO 9001 certified, CE compliant, with patents on key filling and capping technologies.
• 17 years of beverage machinery manufacturing, 9000 plus machines in 125 plus countries.

Frequently Asked Questions

Can this glass bottle filling machine handle both still and carbonated drinks?

Yes. The machine can be delivered with gravity valves for still products, isobaric valves for carbonated products, or both with quick changeover.

Why is the bottle washer separate?

Glass bottles are returnable and carry dust, labels and residue. A separate soaking-type bottle washing machine cleans them thoroughly, and it is easier to maintain than an integrated rinser.

What capping types are available?

Crown cap, aluminum ROPP cap and three-turn screw cap. Change the capping head to switch cap types.

What products can it fill?

Juice and nectar, soy sauce, vinegar, mineral water, soda water, carbonated soft drinks, Chinese liquor (baijiu), red wine and whisky, in glass bottles from 200 ml to 1.5 L.

Can it fill alcohol drinks such as baijiu, red wine and whisky?

Yes. Still wine and spirits use gravity or low-pressure filling with consistent volume. The machine handles glass bottles for liquor, wine and whisky, with ROPP or screw caps to match each market.

Do you supply the complete glass bottle line?

Yes. JNDTECH supplies the water treatment,washing machine, glass bottle filling machine,bottle sticker labeling machine and packing machines as one line, with layout design, installation and training.

Request a Quotationl

Tell us your product, bottle size and target capacity, and JNDTECH will prepare a line layout and quotation. Contact JNDTECH or use the inquiry button on this page.
