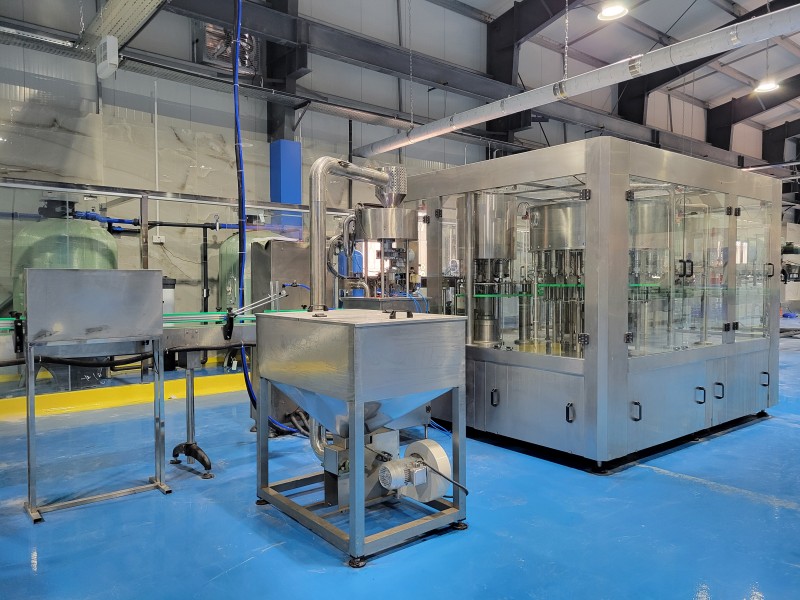

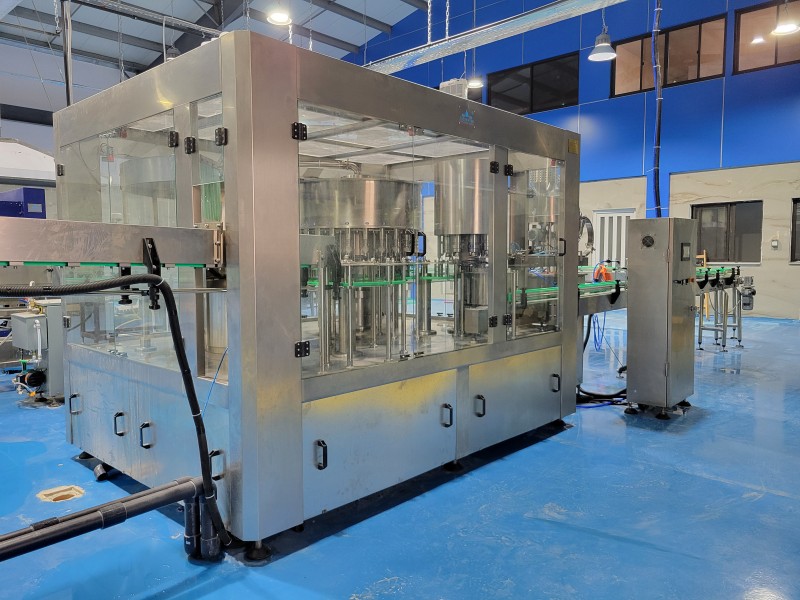

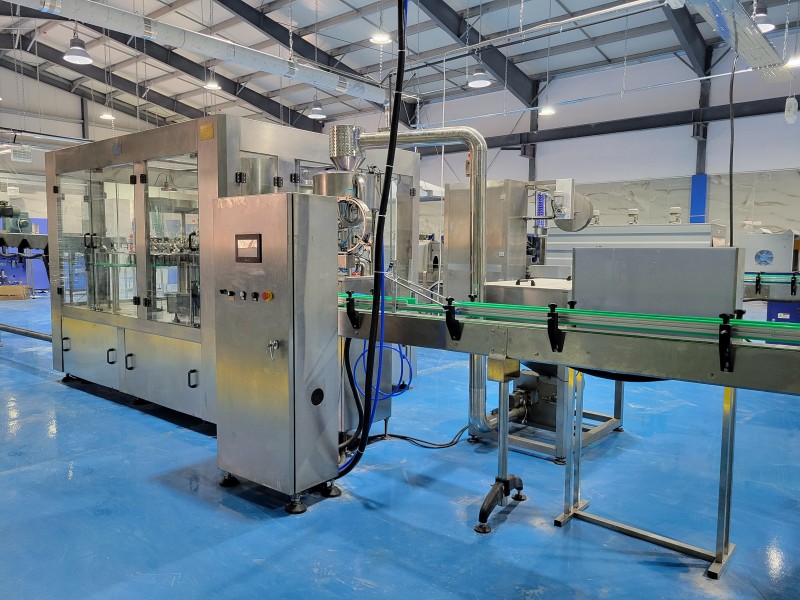

Bottled Water Filling Machine — 3-in-1 Rinsing, Filling & Capping
JNDTECH bottled water filling machine is a 3-in-1 monoblock that rinses, fills and caps PET bottles of 0.1–2 L in one continuous rotary cycle. Running at 3000–12000 BPH (500 ml) on model JND 24-24-8, it is built for pure and mineral water production — from small bottled-water plants to full turnkey lines, all with SS304 contact parts and PLC-controlled operation.
Key Features
- 3-in-1 monoblock design — rinsing, filling and capping on one rotary platform; one machine does the work of three, saving space and transfer damage.
- 3000-12000 BPH output — steady high-speed production for medium bottled-water plants (500 ml basis).

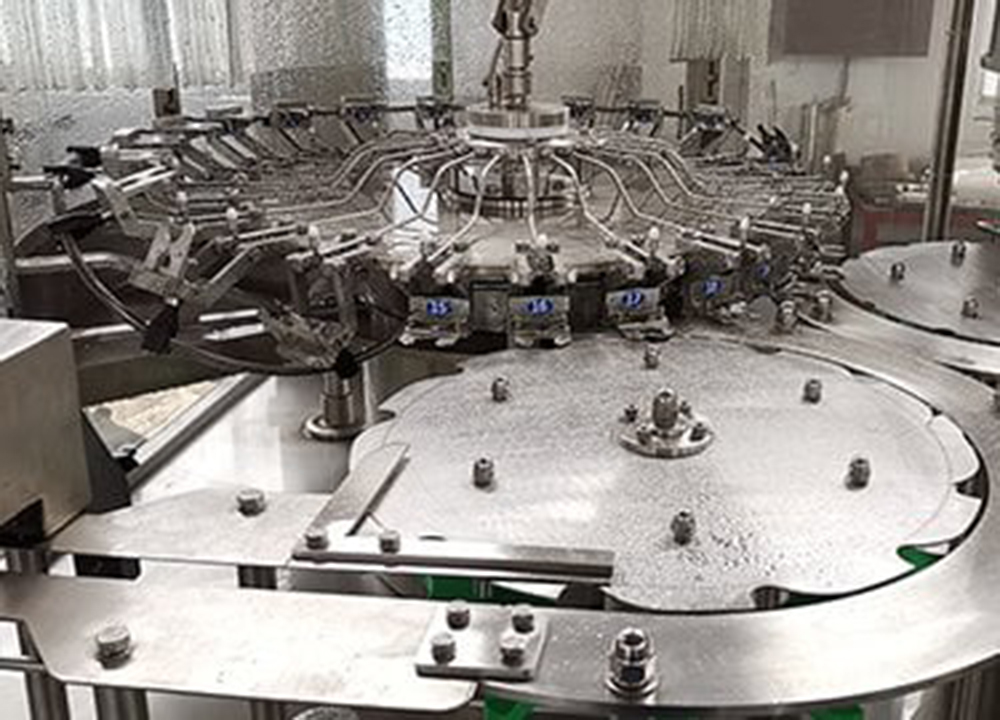

- Bottle rinser station — internal rinse with filtered water, automatic on/off and drip collection keep hygiene high.

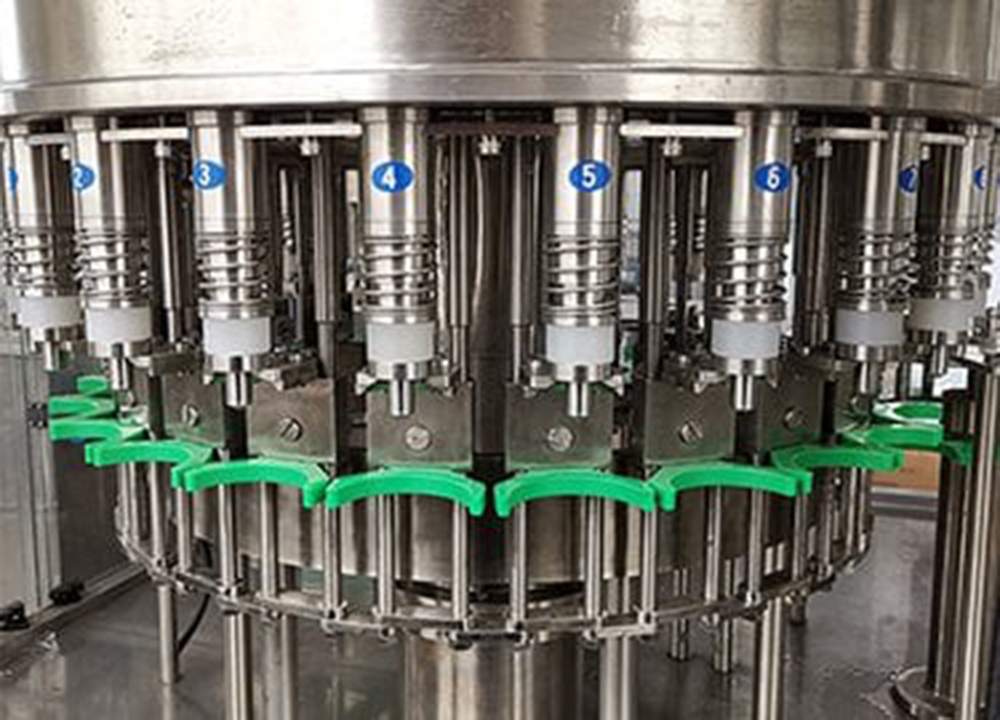

- Accurate level filling — gravity/low-pressure level filling holds consistent fill height across the bottle range.

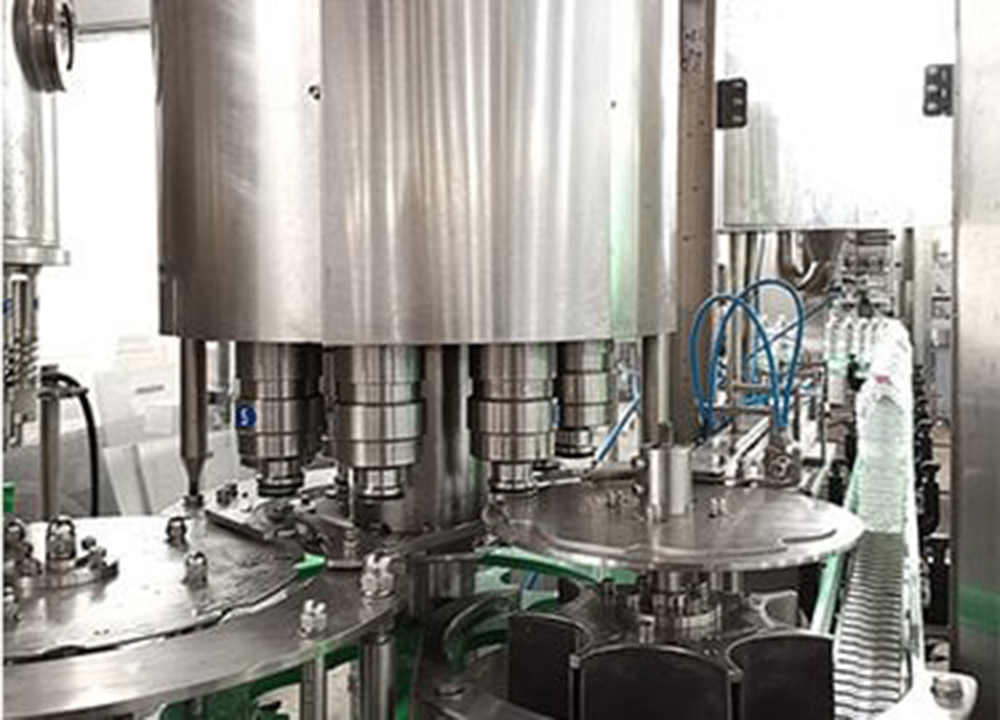

- Magnetic capping head — adjustable torque capping for 28/30 mm caps, no thread damage.
- SS304 contact parts — all product-contact surfaces in food-grade stainless steel, easy to CIP clean.
- PLC + touchscreen control — recipe storage, production count and fault alarms for stable, traceable runs.
- 0.1–2 L PET bottle range — changeover by simple adjustments; round and square bottles supported.
- Low splash & low waste — gentle filling reduces foam, splash and product loss.
- Turnkey JNDTECH line — integrates with blow molders, water treatment, labelers and packers for a complete plant.
Technical Parameters
| Model | Stations (Rinse-Fill-Cap) | Capacity (500 ml) | Bottle Range | Filling Method |
|---|---|---|---|---|
| JND 18-18-6 | 18 rinse / 18 fill / 6 cap | 6000–8000 BPH | 0.1–2 L PET | Gravity level filling |
| JND 24-24-8 | 24 rinse / 24 fill / 8 cap | 9000–12000 BPH | 0.1–2 L PET | Gravity level filling |
Note: figures are typical for 3-in-1 water filling monoblocks. Confirm against your unit's nameplate before publishing.
How It Works — One Rotary Cycle
Bottles enter the rotary starwheel, are internally rinsed with filtered water, then move to the filling station where the level filler delivers purified water to a consistent fill height. The capped bottles then exit onto the conveyor to the labeller and packer. One PLC synchronizes rinsing, filling and capping so bottles never leave the line between stations — no contamination risk, no lost bottles.
Applications
- Pure (RO) water bottling plants
- Mineral and spring water production
- Small bottled-water brands and regional plants
- Stills in juice/tea lines for water-based products
Still-Water vs. Carbonated-Water Filling
A common question: can this machine fill sparkling water? No — different filling principle. This machine uses gravity level filling for still water (pure/mineral). Carbonated drinks need isobaric (counter-pressure) filling to keep CO₂ in — see our Carbonated Drink Filling Machine. For 5-gallon returnable barrels, see the Barrel Water Filling Machine.
Why Choose JNDTECH
JNDTECH (Shenzhen) has delivered water and beverage lines to 125+ countries since 2008. Our bottled water filling machines are engineered for daily food-grade production, backed by a 17-year track record in turnkey water plants. Every machine ships with installation, commissioning and operator training so your line reaches rated speed from day one.
Related Products
- Complete Water Bottling Plant (Turnkey Guide)
- Fully Automatic PET Blow Molding Machine — makes the bottles
- Pure Water Treatment Equipment — feeds the water
- Barrel Water Filling Machine — for 5-gallon drums
- Self-Adhesive Labeling Machine
FAQ
Q1: What bottle sizes can the machine fill?
The standard range is 0.1–2 L PET bottles, round or square. Changeover between sizes takes a few minutes with simple adjustments.
Q2: Can it fill carbonated (sparkling) water?
No. Gravity level filling is for still water. Carbonated drinks require isobaric filling — please see our carbonated drink filling machine.
Q3: What is the output capacity?
Model JND 18-18-6 runs 6000–8000 BPH at 500 ml; a 24-24-8 version reaches 9000–12000 BPH. Larger monoblocks are available.
Q4: What water quality does it need?
The machine accepts treated water from a pure/mineral water system; we recommend matching it with JNDTECH RO or UF water treatment for finished water quality.
