Carbonated Drink Filling Line 2000-36000 BPH Turnkey
Complete carbonated drink filling line: syrup mixing and carbonation, isobaric 3-in-1 monoblock for cola, soda and sparkling water, 2000-24000 BPH with low CO2 loss.
Send InquiryProduct Description
What Is a Carbonated Drink Filling Line
A carbonated drink filling line is a complete production system for PET-bottled soft drinks with gas: cola, soda water, sparkling water and low-pulp energy drinks. Unlike still-water plants, the line keeps CO2 in the bottle from the mixer to the sealed cap. JNDTECH supplies the full line - syrup preparation, carbonation, isobaric filling, capping and downstream packaging - from 2,000 to 36,000 BPH.

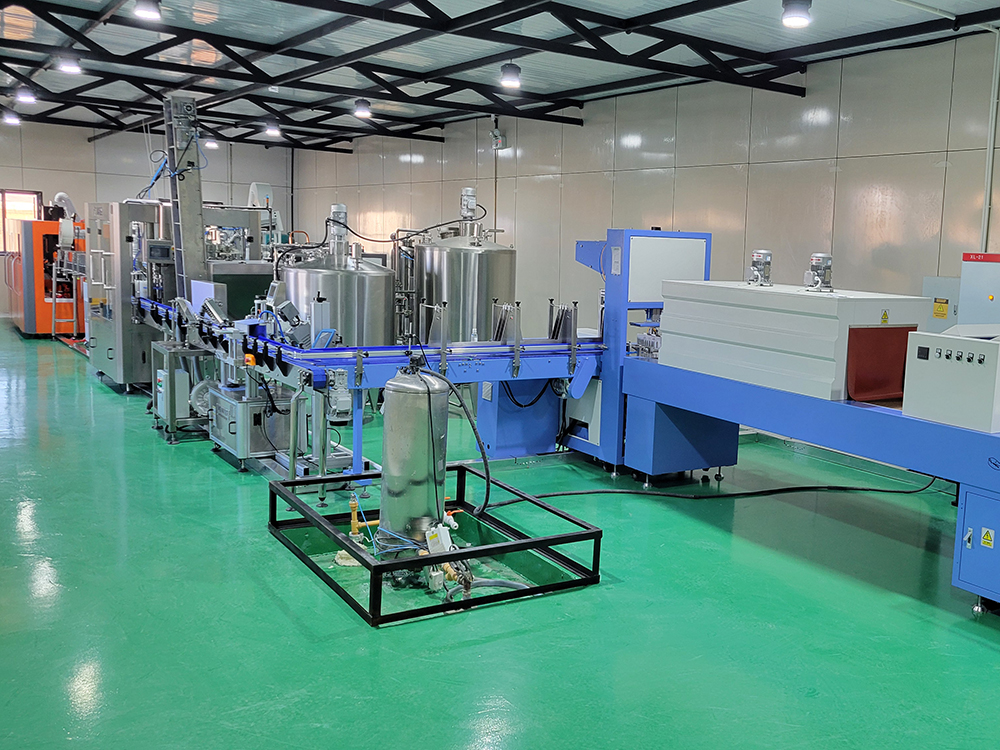

Line Composition
A turnkey carbonated drink line starts before the filler and ends after the capper:
- Water treatment system - RO or UF plus UV and ozone to prepare process water.
- Syrup mixing and deaerator - blends syrup, water and additives, removes dissolved oxygen.
- Carbonation mixer - chills the drink and dissolves CO2 to the target gas volume.

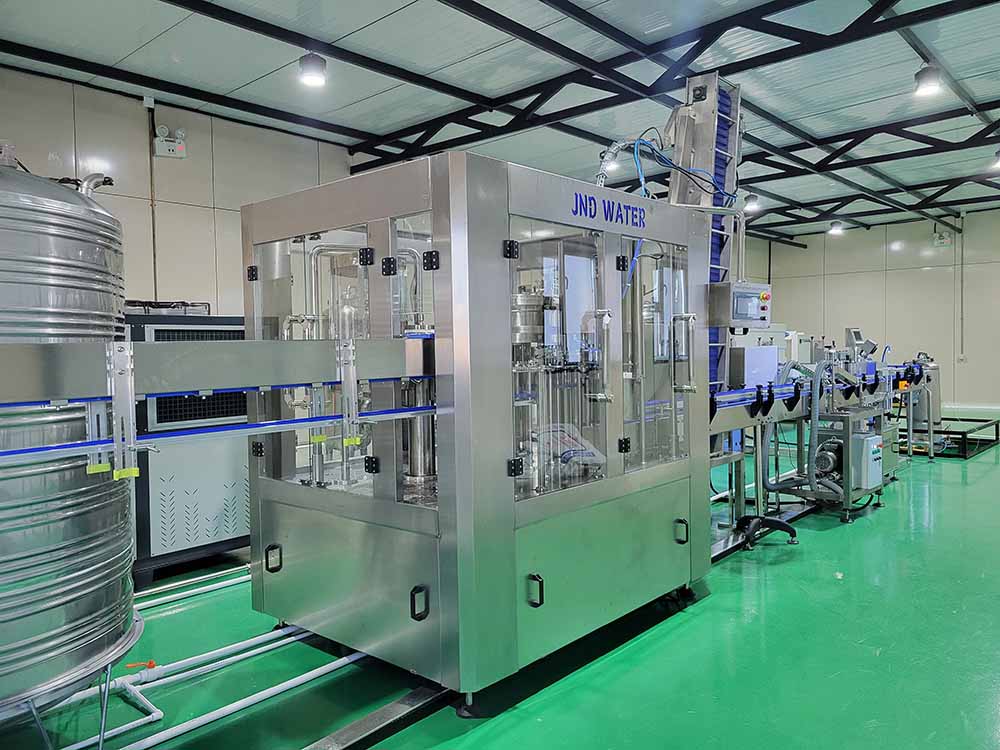

- Isobaric 3-in-1 monoblock - rinses, counter-pressure fills and caps in one frame.
- PET blow molding machine - makes bottles in-house from preforms.
- Labeling machine - OPP hot-melt, self-adhesive or sleeve labeling.
- Shrink wrap or case packer and palletizer - finishes retail-ready packs.
Isobaric Filling: the Heart of the Line
The monoblock charges CO2 into each bottle to match tank pressure before filling. The drink flows in under equal pressure with almost no foaming, the bottle is de-pressurized, and a servo capper seals it. The result is stable carbonation from tank to shelf.
- Low CO2 loss - below 0.5 g/L, protecting fizz and cost per bottle.
- Accurate level - around +/- 2 mm, uniform appearance with less overfill.
- PET-friendly gripper - neck-holding transport protects the bottle body.
- CIP-ready - built-in clean-in-place ports for fast SKU changeovers.
Key Features
- Capacity 2,000 to 24,000 BPH (500 ml basis) with larger monoblocks on request.
- Isobaric counter-pressure filling for cola, soda, sparkling water and carbonated juice.
- Servo-driven capping with torque control; cap detector rejects skewed caps.
- SUS304/316L food-grade contact parts and PLC touchscreen control.
- Optional chiller, CO2 recovery and nitrogen flushing for high gas-volume products.
Applications
Suitable for carbonated soft drink plants, sparkling water brands, carbonated juice and low-pulp energy drink producers, and craft soda pilot lines from 200ml to 2L PET bottles.
Why Choose JNDTECH
- 17 years of beverage machinery manufacturing, 9,000 plus machines in 125 plus countries.
- Turnkey service: line design, syrup room layout, installation, commissioning and training.
- Remote support and spare parts keep your line at rated BPH.
Frequently Asked Questions
What is the difference from a still-water filling line?
A carbonated line adds a deaerator, carbonation mixer and isobaric filler so CO2 stays in the product; still-water lines use gravity or negative-pressure filling.
What bottles can the line handle?
PET bottles from 250ml to 2L, round or square, with screw caps; change parts switch sizes quickly.
Do you provide the syrup room too?
Yes. We size and supply the water treatment, syrup mixing, chiller and carbonation system as part of the turnkey line.
How long is commissioning?
Typical carbonated lines are commissioned in 1 to 3 weeks on site after civil works are ready.
Request a Quotation
Send us your product type, bottle size and target output for a tailored carbonated drink filling line proposal. Contact JNDTECH or use the inquiry button on this page.
